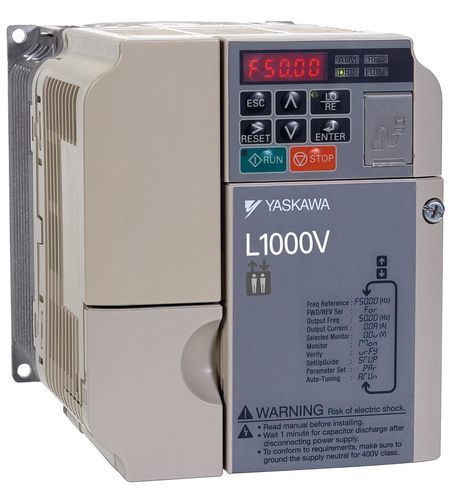

Induction frequency inverter L1000V series

for elevatorsplug-and-playopen-loop

Product overview
The L1000V is the drive of choice for retrofit or new installation of open-loop driven, geared lifts with speeds up to 1.0 m/s. Automatic tuning functions allow adaptation to almost any induction motor, providing the basis for a smooth and comfortable ride. Simple menus, lift-specific functions and settings in lift language enable quick and easy setup. Plug and Play. With proven reliability and low maintenance requirements, the L1000V reduces life-cycle costs and adds value to your lift.

Key features

• Easy setup and operation
• Designed for long service life and low life-cycle cost
• Smooth and comfortable ride characteristics
• Compliance with global standards

Variants (model — Rated output current (HD) — Max. applicable motor power (HD))
Model | Rated output current (HD) | Max. applicable motor power (HD)
CIMR-LC4V0009FAA | 9.2 A | 3.7 kW
CIMR-LC4V0009BAA | 9.2 A | 3.7 kW
CIMR-LC4V0015FAA | 14.8 A | 5.5 kW
CIMR-LC4V0015BAA | 14.8 A | 5.5 kW
CIMR-LC2V0018FAA | 17.5 A | 3.7 kW
CIMR-LC2V0018BAA | 17.5 A | 3.7 kW
CIMR-LC4V0018FAA | 18 A | 7.5 kW
CIMR-LC4V0018BAA | 18 A | 7.5 kW
CIMR-LC4V0024FAA | 24 A | 11 kW
CIMR-LC4V0024BAA | 24 A | 11 kW
CIMR-LC2V0025FAA | 25 A | 5.5 kW
CIMR-LC2V0025BAA | 25 A | 5.5 kW
CIMR-LC4V0031FAA | 31 A | 15 kW
CIMR-LC4V0031BAA | 31 A | 15 kW
CIMR-LC2V0033FAA | 33 A | 7.5 kW
CIMR-LC2V0033BAA | 33 A | 7.5 kW
CIMR-LC2V0047FAA | 47 A | 11 kW
CIMR-LC2V0047BAA | 47 A | 11 kW
CIMR-LC2V0060FAA | 60 A | 15 kW
CIMR-LC2V0060BAA | 60 A | 15 kW

Characteristics / technical specifications

• Application: Lift (open-loop driven, geared lifts)
• Maximum supported lift speed: up to 1.0 m/s
• Automatic motor tuning for fast adaptation to induction motors
• User interface: simple menus and lift-specific settings (lift language)
• Design focus: Plug and Play, proven reliability, low maintenance, reduced life-cycle costs
• Input power supply: 200 V / 400 V (models available for these supplies)
• Input power phases: 3-phase
• Supported motor type: Induction motor
• Embedded EMC filter: No (series/configuration indicates no embedded filter)
• Standards compliance (typical): CE, RoHS, UL, cUL, UKCA
