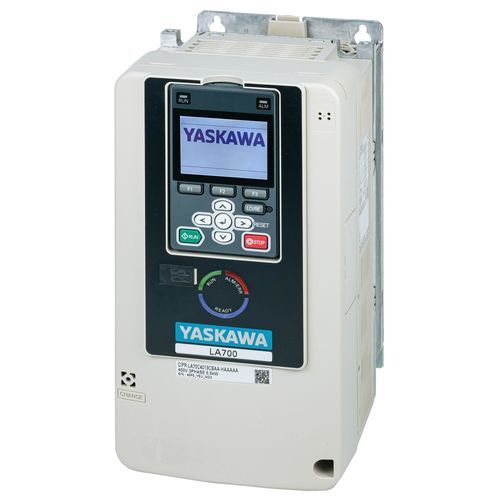

Induction frequency inverter LA700 seriesthree-phasepermanent magnetfor elevators
Add to favorites
Compare this product
Characteristics
- Type
- three-phase, induction, permanent magnet
- Applications
- for elevators
- Other characteristics
- EMC, 400 V
- Power
Min.: 4 W
(13.65 BTU/h)Max.: 15 W
(51.18 BTU/h)- Intensity
Min.: 8.1 A
Max.: 27.1 A
Description
Product Overview
The LA700 series lift drives from Yaskawa are engineered for modern elevator applications. These drives control both induction and permanent‑magnet motors and are suitable for new installations, machine‑room‑less (MRL) elevators and modernization projects. Designed to combine proven Yaskawa reliability with enhanced ride comfort.
Features
Models in LA700 Series
Characteristics / Technical specifications
The LA700 series lift drives from Yaskawa are engineered for modern elevator applications. These drives control both induction and permanent‑magnet motors and are suitable for new installations, machine‑room‑less (MRL) elevators and modernization projects. Designed to combine proven Yaskawa reliability with enhanced ride comfort.
Features
- Controls both induction motors and permanent‑magnet motors
- Designed specifically for lift (elevator) applications: new installations, MRL units and modernization
- Focus on ride comfort and operational reliability
- Variants cover a range of rated output currents and maximum applicable motor powers
- Optional configurations: built‑in or no EMC filter; standards compliance options include CE and UKCA
Models in LA700 Series
- CIPR-LA70C4012ABA-9600 — Rated output current (HD): 8.1 A; Max. applicable motor power (HD): 4 kW
- CIPR-LA70C4012CBA-9600 — Rated output current (HD): 8.1 A; Max. applicable motor power (HD): 4 kW
- CIPR-LA70C4019ABA-9600 — Rated output current (HD): 13 A; Max. applicable motor power (HD): 5.5 kW
- CIPR-LA70C4019CBA-9600 — Rated output current (HD): 13 A; Max. applicable motor power (HD): 5.5 kW
- CIPR-LA70C4023ABA-9600 — Rated output current (HD): 15.8 A; Max. applicable motor power (HD): 7.5 kW
- CIPR-LA70C4023CBA-9600 — Rated output current (HD): 15.8 A; Max. applicable motor power (HD): 7.5 kW
- CIPR-LA70C4030ABA-9600 — Rated output current (HD): 21 A; Max. applicable motor power (HD): 11 kW
- CIPR-LA70C4030CBA-9600 — Rated output current (HD): 21 A; Max. applicable motor power (HD): 11 kW
- CIPR-LA70C4039ABA-9600 — Rated output current (HD): 27.1 A; Max. applicable motor power (HD): 15 kW
- CIPR-LA70C4039CBA-9600 — Rated output current (HD): 27.1 A; Max. applicable motor power (HD): 15 kW
Characteristics / Technical specifications
- Brand: Yaskawa
- Series: LA700
- Application: Lift (elevator) drives
- Supported motor types: Induction motor; Permanent‑magnet motor
- Input power supply (typical): 400 V
- Input power phases: 3‑phase
- EMC filter: embedded option available (models may provide No or Yes)
- Standards compliance: CE and UKCA (options selectable)
- Rated output current (HD) range across models: 8.1 A to 27.1 A
- Max. applicable motor power (HD) range across models: 4 kW to 15 kW
