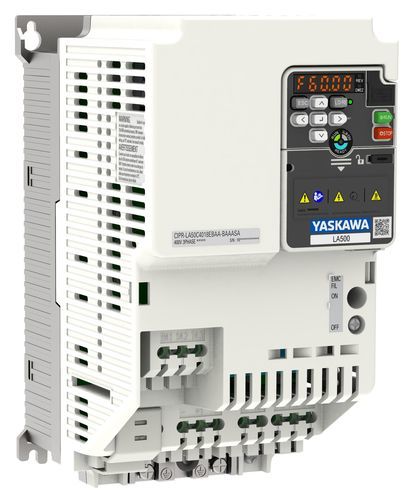

Induction frequency inverter LA500 series
three-phasefor elevatorswith integrated safety

Induction frequency inverter - LA500 series - YASKAWA Europe GmbH - three-phase / for elevators / with integrated safety
Induction frequency inverter - LA500 series - YASKAWA Europe GmbH - three-phase / for elevators / with integrated safety
Add to favorites
Compare this product
Go to the YASKAWA Europe GmbH website for more information

Characteristics

Type
three-phase, induction
Applications
for elevators
Other characteristics
EMC, with integrated safety, 200-480 V, 400 V, for motors
Power

Max.: 22 W
(75.07 BTU/h)

Min.: 4 W
(13.65 BTU/h)

Intensity

Max.: 75 A

Min.: 9.2 A

Description

Overview
AC microdrives for lift applications. The LA500 Series integrates safety functions, control tuned for ride comfort and proven reliability. Designed for elevator manufacturers and service companies, it supports energy‑efficient operation and simplifies installation and maintenance.

Key features
  • Integrated safety functions for lift operation
  • Drive control optimized for ride comfort
  • Wide current range across models (approx. 9.2 A to 75 A)
  • Compatibility with induction motors; EMC filter options available
  • Available in 200 V and 400 V input versions; 3‑phase

Available models
  • LA50C4009EBB — Rated output current (HD): 9.2 A; Max. applicable motor power (HD): 4 kW
  • LA50C4009ABB — Rated output current (HD): 9.2 A; Max. applicable motor power (HD): 4 kW
  • LA50C4015EBB — Rated output current (HD): 14.8 A; Max. applicable motor power (HD): 5.5 kW
  • LA50C4015ABB — Rated output current (HD): 14.8 A; Max. applicable motor power (HD): 5.5 kW
  • LA50C2018EBB — Rated output current (HD): 17.6 A; Max. applicable motor power (HD): 4 kW
  • LA50C2018ABB — Rated output current (HD): 17.6 A; Max. applicable motor power (HD): 4 kW
  • LA50C4018EBB — Rated output current (HD): 18 A; Max. applicable motor power (HD): 7.5 kW
  • LA50C4018ABB — Rated output current (HD): 18 A; Max. applicable motor power (HD): 7.5 kW
  • LA50C4024EBB — Rated output current (HD): 24 A; Max. applicable motor power (HD): 11 kW
  • LA50C4024ABB — Rated output current (HD): 24 A; Max. applicable motor power (HD): 11 kW
  • LA50C2025EBB — Rated output current (HD): 25 A; Max. applicable motor power (HD): 5.5 kW
  • LA50C2025ABB — Rated output current (HD): 25 A; Max. applicable motor power (HD): 5.5 kW
  • LA50C4031EBB — Rated output current (HD): 31 A; Max. applicable motor power (HD): 15 kW
  • LA50C4031ABB — Rated output current (HD): 31 A; Max. applicable motor power (HD): 15 kW
  • LA50C2033EBB — Rated output current (HD): 33 A; Max. applicable motor power (HD): 7.5 kW
  • LA50C2033ABB — Rated output current (HD): 33 A; Max. applicable motor power (HD): 7.5 kW
  • LA50C4039EBB — Rated output current (HD): 39 A; Max. applicable motor power (HD): 18.5 kW
  • LA50C4039ABB — Rated output current (HD): 39 A; Max. applicable motor power (HD): 18.5 kW
  • LA50C4045EBB — Rated output current (HD): 45 A; Max. applicable motor power (HD): 22 kW
  • LA50C4045ABB — Rated output current (HD): 45 A; Max. applicable motor power (HD): 22 kW
  • LA50C2047EBB — Rated output current (HD): 47 A; Max. applicable motor power (HD): 11 kW
  • LA50C2047ABB — Rated output current (HD): 47 A; Max. applicable motor power (HD): 11 kW
  • LA50C2060EBB — Rated output current (HD): 60 A; Max. applicable motor power (HD): 15 kW
  • LA50C2060ABB — Rated output current (HD): 60 A; Max. applicable motor power (HD): 15 kW
  • LA50C2075EBB — Rated output current (HD): 75 A; Max. applicable motor power (HD): 18.5 kW
  • LA50C2075ABB — Rated output current (HD): 75 A; Max. applicable motor power (HD): 18.5 kW

Technical specifications
  • Application: lift / elevator
  • Product type: AC microdrive, LA500 Series
  • Input voltage: 200 V or 400 V (model dependent)
  • Input phases: 3‑phase
  • EMC filter: available (embedded/options vary by model)
  • Motor type supported: induction motor
  • Rated output current (HD): approx. 9.2 A to 75 A depending on model
  • Max. applicable motor power (HD): approx. 4 kW to 22 kW depending on model
  • Standards compliance: CE, RoHS

Catalogs

No catalogs are available for this product.

See all of YASKAWA Europe GmbH‘s catalogs
Go to the YASKAWA Europe GmbH website for more information
