3-axis CNC machining center FV56T
verticalBBT3016 tools

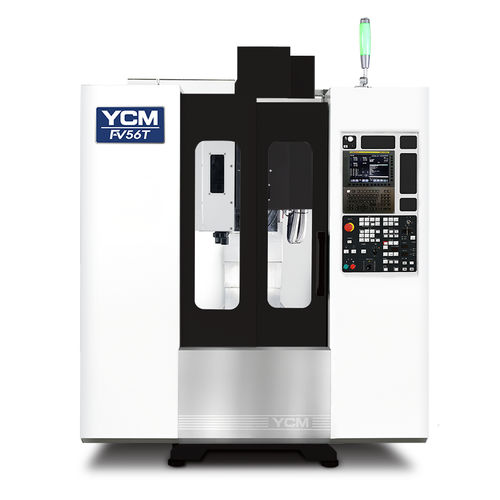

3-axis CNC machining center - FV56T - YCM (Yeong Chin) - vertical / BBT30 / 16 tools
3-axis CNC machining center - FV56T - YCM (Yeong Chin) - vertical / BBT30 / 16 tools
3-axis CNC machining center - FV56T - YCM (Yeong Chin) - vertical / BBT30 / 16 tools - image - 2
3-axis CNC machining center - FV56T - YCM (Yeong Chin) - vertical / BBT30 / 16 tools - image - 3
3-axis CNC machining center - FV56T - YCM (Yeong Chin) - vertical / BBT30 / 16 tools - image - 4
3-axis CNC machining center - FV56T - YCM (Yeong Chin) - vertical / BBT30 / 16 tools - image - 5
3-axis CNC machining center - FV56T - YCM (Yeong Chin) - vertical / BBT30 / 16 tools - image - 6
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BBT30
Number of tool stations
16 tools, 20 tools
X travel

560 mm
(22.05 in)

Y travel

410 mm
(16.14 in)

Z travel

450 mm
(17.72 in)

Rotational speed

15,000 rpm
(94,248 rad.min-1)

Power

3.7 kW
(5.03 hp)

Table load capacity

300 kg
(661 lb)

Tool weight (max)

4 kg
(8.8 lb)

Weight

2,800 kg
(6,172.94 lb)

Description

Travel Distance Between Spindle Nose & Table Top mm 110~560(110~695) Table Table Size mm 700 x 420 No. T-slot x Size x Pitch mm 3 x 14 x 100 Feedrate Cutting Feedrate mm/min. 1~10,000 ATC Max. Tool Dimension (W/O Adjacent Tools) mm ø63 x 200(ø100 x 200)

Catalogs

MV series
MV series
12 Pages
