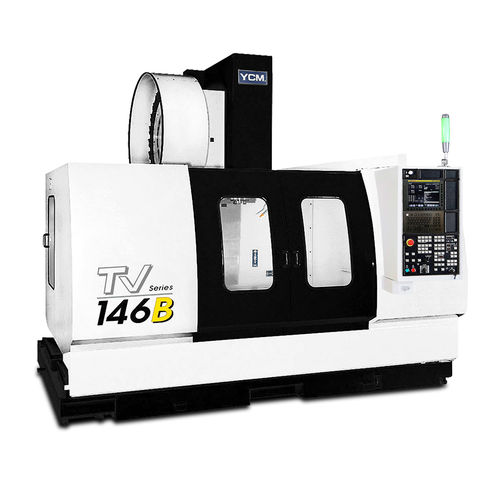

3-axis CNC machining center TV146B

verticalBT 5024 tools

The Best Force Flow T-base Design The long travel of X-axis lies on the top of the base, where the saddle moves along the full stroke; the cross Y-axis saddle supports the work table. The T-base rigid structure has full stroke support and do not have overhang problem guarantees the most dynamic leveling accuracy. All axes are equipped with hardened and precision ground integrated square guideway with durable Turcite-B lubrication coating. Sophisticated scraper work guarantees the best contact and perfect surface of the components to assure flawless accuracy. All precise ballscrews are pre-tensioned and directly coupled with powerful servo motors to reduce backlash and ensure the best accuracy. The counter weight of Z-axis headstock is secured by guide bar to minimize machining vibration. The Y-axis is equipped with 4 guideways to gain the best support and forceflow.
