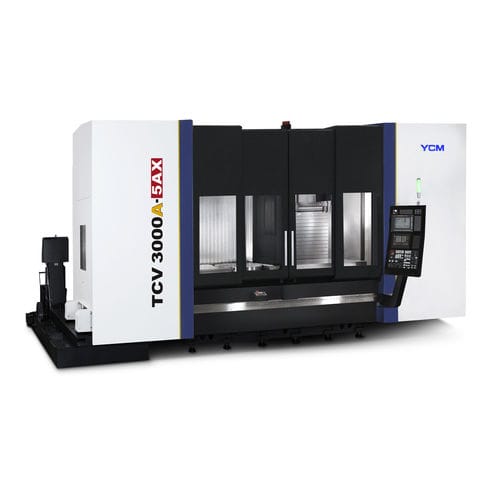

3-axis CNC machining center TCV3000A-5AX

verticaltraveling-columnwith rotary table

Reinforced Body Structure Wide span design of machine structure. *Large delta machine column and base ensure highest stability. With FEM analysis. With stepped design and 6 slider blocks on X-axis ensure the ultra reliable axial movement. With the installation of dividing wall in the working area, both long and complex parts can be manufactured in the same machine. High Efficiency Circulated cooling system design on X-axis ensures stable temperature and optimal accuracy. Centroid driven on X-axis to reduce vibration during movement. No counter weight design on Z-axis that lowers vibration while machining and greatly improves surface roughness. The guide blocks support tool magazine to ensure smooth and stable movement. Max. speed (B-axis): 33.3 rpm Swivel angle (B-axis): ±110° / ±120° (Big torque opt.) Max. speed (C-axis): 50 rpm (FANUC opt.) / 90 rpm (HEIDENHAIN std.) Positioning accuracy (C-axis): <10 sec. YCM In-House Built-in Spindle The YCM in-house built-in spindle effectively lowers vibration, providing the best surface performance. Meanwhile, it prolongs lifespan of spindle and tools during heavy cutting.
