3-axis CNC machining center NSV156A
verticalfor aluminumcolumn type

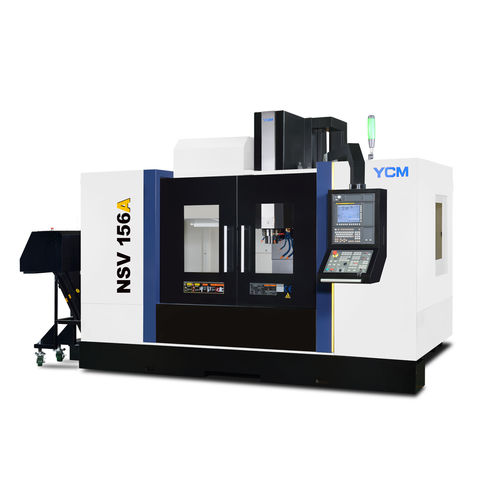

3-axis CNC machining center - NSV156A - YCM (Yeong Chin) - vertical / for aluminum / column type
3-axis CNC machining center - NSV156A - YCM (Yeong Chin) - vertical / for aluminum / column type
3-axis CNC machining center - NSV156A - YCM (Yeong Chin) - vertical / for aluminum / column type - image - 2
3-axis CNC machining center - NSV156A - YCM (Yeong Chin) - vertical / for aluminum / column type - image - 3
3-axis CNC machining center - NSV156A - YCM (Yeong Chin) - vertical / for aluminum / column type - image - 4
3-axis CNC machining center - NSV156A - YCM (Yeong Chin) - vertical / for aluminum / column type - image - 5
3-axis CNC machining center - NSV156A - YCM (Yeong Chin) - vertical / for aluminum / column type - image - 6
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Machined material
for aluminum
Structure
column type
Spindle mount
BBT40
Associated functions
cutting
Other characteristics
high-performance, high-rigidity, direct-drive, with automatic tool changer
X travel

1,530 mm
(60.24 in)

Y travel

650 mm
(25.59 in)

Z travel

610 mm
(24.02 in)

Rotational speed

12,000 rpm, 15,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1)

Power

22 kW, 30 kW, 48 kW
(29.91 hp, 40.79 hp, 65.26 hp)

Work feed X-axis

48,000 mm/min
(31.5 in/s)

Work feed Y-axis

48,000 mm/min
(31.5 in/s)

Table load capacity

1,500 kg
(3,307 lb)

Tool weight (max)

6 kg
(13.2 lb)

Weight

10,000 kg
(22,046.23 lb)

Description

Result in excellent surface finish while maximizing both spindle and tool life under hard milling conditions. Wide distance between guideways Advanced design with reinforced body structure through FEM analysis, the NSV series offers superb cutting performance and reduced vibration to meet the highest machining demand. Minimizes the vibration during tool change Tool magazine capacity: 30T Standard ATC door prevents coolant and chips from entering tool magazine.
