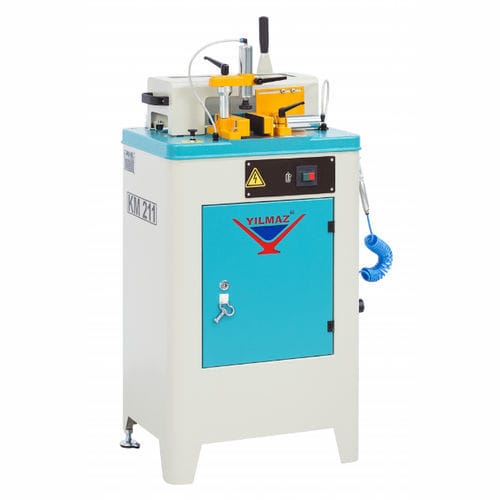

Aluminum end milling machine KM 211 S

for aluminum profilespneumaticfor profiles

Product information
Manual machine for precise end-milling operations on aluminium profiles; suitable for production and workshop environments where manual control and pneumatic clamping are required.

General features

• End-milling performed by manual feed for controlled finishing
• Top guard for safe operation
• Easy cutter adjustment using gap/spacer parts
• Firm workpiece fixation via pneumatic vertical and horizontal clamps
• Robust machine stand for steady operation
• Profile clamping capacity: H:160 x W:150 mm
• Maximum end-milling capacity: H:90 x W:70 mm
• Maximum cutter diameter (D x d): Ø170 x Ø30 mm

Standard accessories

• 1 x pneumatic vertical clamp
• 1 x pneumatic horizontal clamp
• Spray tool lubrication system
• Air gun

Optional accessories

• Milling cutter set
• RS 1000 profile support

Technical specifications
Power: 1200 W / 400V AC 3P+PE / 50/60 Hz.
Spindle speed: 3,000 RPM
Feed / rotation: 3000 RPM
Maximum cutter diameter: DMax: Ø170 mm, bore d: Ø30 mm
Air consumption: 14 L/min
Air pressure: 6-8 bar
Dimensions (L×W×H): 44×74×116
Weight: 66 Kg / 61 Kg

Specifications / Technical details

• Brand: YILMAZ MACHINE
• Model: KM 211 S
• Power: 1200 W
• Supply voltage / frequency: 400V AC 3P+PE / 50/60 Hz
• Spindle speed: 3,000 RPM
• Maximum cutter diameter (D x d): Ø170 x Ø30 mm
• Air consumption: 14 L/min
• Air pressure: 6-8 bar
• Profile clamping capacity: H 160 x W 150 mm
• Maximum end-milling capacity: H 90 x W 70 mm
• Dimensions: 44 x 74 x 116 (units as on page)
• Weight: 66 Kg / 61 Kg
