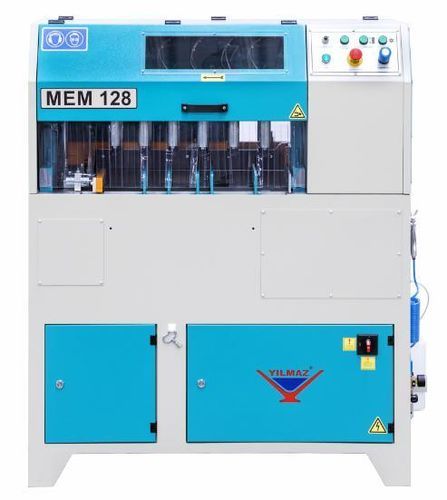

Aluminum end milling machine MEM 128

for PVCpneumaticdouble

Product info
Machine using a motor–belt transmission, designed for serial end-milling operations on PVC and aluminium profiles with precision.

General features

• Two-hand safety operation
• Adjustable motor speed for high-quality end milling
• Practical cutter change system for fast tool replacement
• End milling capacity for 1 to 6 sash and frame profiles
• Double-acting vise pressure system for operator safety
• Vertical and horizontal clamps to secure workpieces firmly on the table
• Safety operations with protective guard
• Cutter storage located at the front of the machine
• Robust machine stand and support arms for machining profiles up to 2.5 m
• Practical cutter adjustment using spacer parts
• Spray tool lubrication system
• Profile clamping capacity: H: 210 x W: 615 mm
• Maximum end-milling capacity: H: 150 x W: 615 mm
• Maximum cutter diameter: Ø185 mm (bore Ø30 mm)

Standard accessories

• 12 pneumatic vertical clamps with adjustable pressure valve
• Horizontal clamp set for firm profile fixing
• Air gun

Optional accessories

• Special milling cutter sets according to profile geometry

Technical specifications table
Electrical: 1500 W / 400V AC 3P+PE / 50/60 Hz.
Spindle speed: 3,000 RPM
Rotation speed: ---
Max cutter diameter: Dmax: Ø185 mm
Cutter bore (d): Ø30 mm
Air consumption: 9 L/min
Air pressure: 6–8 bar
Dimensions: 70 x 130 x 143.5
Weight: 290 kg / 255 kg

Technical specifications

• Model: MEM 128
• Motor / Power: 1500 W
• Supply: 400V AC 3P+PE / 50/60 Hz
• Adjustable motor speed for precise end milling
• Spindle speed: 3,000 RPM
• Maximum cutter diameter: Ø185 mm (bore Ø30 mm)
• Profile clamping capacity: H 210 x W 615 mm
• Maximum end-milling capacity: H 150 x W 615 mm
• End milling of 1 to 6 sash and frame profiles
• Two-hand safety operation and protective guard
• Double-acting vise pressure system
• Vertical and horizontal clamps for firm fixation
• Practical cutter change and frontal cutter storage
• Robust stand and support arms for profiles up to 2.5 m
• Spray tool lubrication system
• Air consumption: 9 L/min; Required air pressure: 6–8 bar
• Dimensions (given): 70 x 130 x 143.5
• Weight: 290 kg / 255 kg
• Standard accessories: 12 pneumatic vertical clamps (adjustable), horizontal clamp set, air gun
• Optional accessories: special milling cutter sets according to profiles
