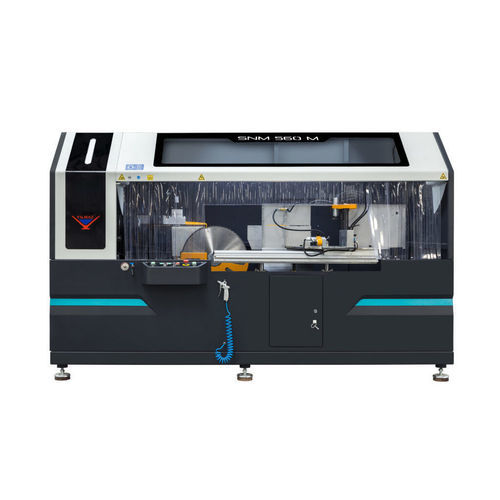

Variable-angle notching machine SNM 560 M

pneumatichydraulicmanual

Product Info
SNM 560 M and SNM 560 SRV saw-notching machines provide variable notching for sash, frame, mullion and transom combinations used in curtain-walls, winter gardens, skylights and special-design panels. The workpiece remains fixed on the table while a hydro-pneumatic sawing unit with two blades slides on linear guides to perform precise notches and angled cuts.

General Features

• Lower (vertical) saw unit Ø550 mm and upper (horizontal) saw unit Ø500 mm
• Semi-automatic sawing unit with adjustable feed speed via hydro-check cylinder
• Angle adjustment of saw units and table miter by handwheel with digital displays
• Height adjustment of profile support table by handwheel with band ruler
• Depth stop adjustment by handwheel with numerical display
• 4 pneumatic clamps for secure fixing of profiles at any angle
• Cast-iron and steel body construction for industrial use
• Pneumatically operated safety cover and two-hand safety module
• Easy saw-wear adjustment and interior LED lighting

Standard Accessories

• 1 x Ø500 mm and 1 x Ø550 mm saw blades (supplied)
• 2 x spray lubrication systems for saw blades
• 3 x digital screens for saw blade angle and table miter angle
• 1 x numerical display for profile depth position
• 2 x pneumatic horizontal clamps and 2 x pneumatic vertical clamps
• Swarf pan

Optional Accessories

• Laser marker for vertical profile alignment
• Profile support arm RS 1000
• Spare saw blade Ø500 mm
• Spare saw blade Ø550 mm

Technical Specifications
Electrical: 3 kW / 400V AC 3P+PE / 50/60 Hz
Rotation / Saw speed: ---
Saw diameters: D1 Ø550 / D2 Ø500 / Arbor bore d: 30 mm
Hydraulic/Pneumatic flow: 160 L/min
Operating pressure: 6-8 bar
Dimensions (LxWxH): 160x300x190 mm
Weight: 1,350 kg / 1,180 kg

Characteristics / Technical data

• Model: SNM 560 M
• Power supply: 3 kW / 400V AC 3P+PE / 50/60 Hz
• Saw blades supplied: Ø500 mm and Ø550 mm
• Hydro-pneumatic sawing unit with two saw blades
• Pneumatic clamps: 4 (angle adjustable)
• Adjustments: angle, miter, height and depth via handwheels with digital/numerical displays
• Air flow required: 160 L/min at 6-8 bar
• Industrial cast-iron and steel construction; pneumatic safety cover and two-hand control
• Interior LED lighting; swarf pan included
