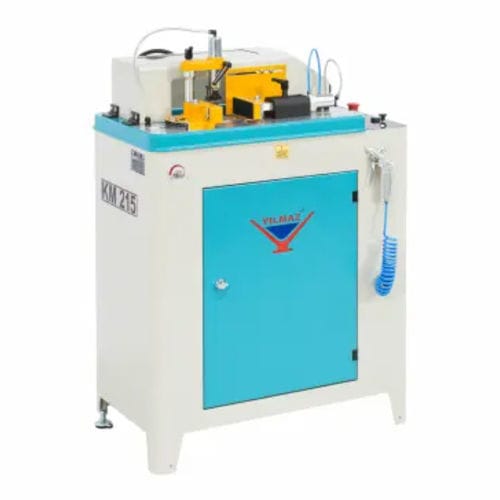

Aluminum end milling machine KM 215 S

for PVCfor PVC profilespneumatic

Product Info
Machine which works with hydro-pneumatic system, ideal for the end milling operations on PVC and aluminium profiles precisely

General Features

• High quality end-milling operations thanks to the hydro-pneumatic system
• Quick tool change system
• Adjustable support system to four different profiles
• Safety operations with safety guard
• End milling of PVC mullions between 45° and 90°
• Storage place for spare tools
• Fixing the workpiece firmly thanks to the vertical and horizontal clamps
• Practical cutter adjustment by means of the spacer parts
• Robust machine stand
• Profile clamping capacity: H:160 x W:225 mm
• Maximum end-milling capacity : H:90 x W:65 mm
• Maximum cutter diameter (D x d): Ø160 x Ø30 mm

Standard Accessories

• Spray tool lubrication system
• 1 x pneumatic vertical clamp
• 1 x pneumatic horizontal clamp
• Air gun

Optional Accessories

• Milling cutter sets according to the customer profiles
• RS 1000 Profile support
• Spare Mandrel & shim set for d: Ø30 mm cutters
• Extension kit for d: Ø30 cutters to increase the end-milling capacity to H:180 (special)
• Spare mandrel & shim set for d: Ø32 mm cutters
• Extension kit for d: Ø32 cutters to increase the end-milling capacity to H:180 (special)

TECHNICAL SPECIFICATIONS TABLE
Electrical: 1200 W / 2A / 400V AC 3P+PE / 50/60 Hz.
Spindle speed (drill/mill): 3.000 RPM
Rotation speed (general): 3000 RPM
Maximum cutter dimensions: Dmax: Ø160 mm, d: Ø30 mm
Operating pressure: 6-8 bar
Dimensions (LxWxH or unit not specified): 42 x 83.5 x 120
Weight: 120 Kg / 95 Kg

Caractéristiques / Spécifications techniques

• Model: KM 215 S
• Operation system: Hydro-pneumatic
• Intended materials: PVC and aluminium profiles
• Profile clamping capacity: H 160 mm x W 225 mm
• Maximum end-milling capacity: H 90 mm x W 65 mm
• Maximum cutter diameter: Ø160 x Ø30 mm (with optional mandrel/shim sets for larger d)
• Spindle speed: 3000 RPM
• Electrical power: 1200 W, 2 A (400V AC 3P+PE, 50/60 Hz)
• Required pneumatic pressure: 6-8 bar
• Machine dimensions (reported): 42 x 83.5 x 120
• Machine weight (reported): 120 Kg / 95 Kg
• Includes: spray tool lubrication, pneumatic vertical and horizontal clamps, air gun
