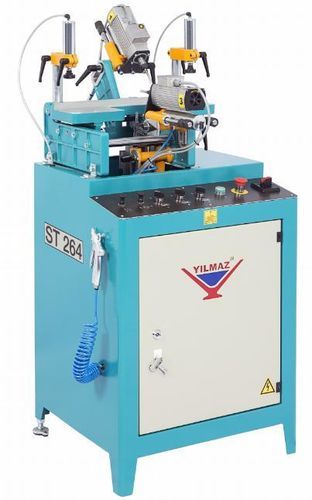

Automatic grooving machine ST 264

Product Info
Ideal milling machine to open water drain channels on PVC profiles. Operates on two or three axes with adjustable angles and heights; suitable for series production and profile processing.

General Features

• Water slot opening performed pneumatically
• Drilling/milling motors can operate separately on three axes or two motors on different axes simultaneously
• Practical adjustment of slot length and depth via mechanical stoppers
• Pneumatically controlled, speed-adjustable motor movement
• 2 x pneumatic clamps for precise profile fixation
• Automatic drilling/milling start by push-button
• Axis misalignments compensated pneumatically with movable table
• Motor selection via local switches
• PLC control system
• Maximum profile dimension: Height 115 mm × Width 100 mm

Standard Accessories

• Service keys
• Supplied with milling cutters ø5×L80 and ø5×L60 mm
• Air gun

Optional Accessories

• Spare cutter bits ø5×L80 mm
• Spare cutter bits ø5×L60 mm

Characteristics / Technical specifications

• Model: ST 264
• Application: Opening water drain channels on PVC profiles
• Axes: Two- or three-axis operation; motors can run independently or in combination
• Control: PLC control with motor selection switches
• Clamping: 2 x pneumatic clamps
• Feed / motor movement: Pneumatically controlled, speed-adjustable
• Start: Automatic start by push-button
• Profile adjustment: Slot length/depth via stoppers; axis misalignments corrected pneumatically with movable table
• Maximum profile dimension: Height 115 mm × Width 100 mm
• Included tooling: Milling cutters ø5×L80 and ø5×L60 mm
• Standard accessories: Service keys, air gun
• Optional tooling: Spare cutter bits ø5×L80 and ø5×L60 mm
