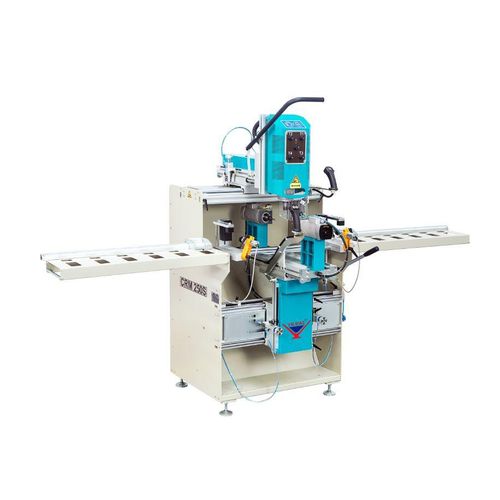

Manually-controlled copy router CRM 250 S

3-spindlefor aluminumfor PVC

Product Info
It is designed to operate quickly and precisely lock’s holes on aluminium and PVC profiles, without releasing the workpiece in one cycle. It is also used for the drilling handles, hinges, espagnolette holes and opening water drain slot on PVC and aluminium profiles.

General Features

• Copy router with 1 vertical and 2 horizontal spindle motors
• Designed to perform the operations quickly and precisely on 3 sides of the aluminium profile without releasing
• Pneumatic 2 x horizontal and 2 x vertical clamps
• Horizontal and vertical pneumatic tracers with 3 different diameters Ø5, Ø8, Ø10 mm
• Horizontal and vertical templates including standard figures for PVC and aluminium profiles
• High precision bearing mechanism, gas shock absorbers and ergonomic arm design that facilitate operations
• 1 m of roller tables positioned at the right and left sides
• Manually adjustable profile stops placed on the right and left, allows the work piece to be positioned properly in the machine
• Spray tool cooling system
• Max. clamping capacity W:200 mm H:150 mm

Standard Accessories

• Equipped with 1 pc. x Ø5 x L100 and 2 pc. x Ø10 x L100 mm cutter bits
• Air gun
• 2 x profile stops both left and right
• Spray tool lubrication system
• 2 x pneumatic horizontal clamps
• 2 x pneumatic vertical clamps

Optional Accessories

• Spare cutter bits with Ø5 x L100 mm (for copy routing operations)
• Spare cutter bits with Ø10 x L100 mm (for copy routing operations)
• Spare collets for Ø5 mm cutter bit
• Spare collets for Ø10 mm cutter bit
• Special templates

Caractéristiques / spécifications techniques

• Spindle configuration: 1 vertical + 2 horizontal spindle motors
• Pneumatic clamps: 2 horizontal + 2 vertical
• Tracer diameters: Ø5, Ø8, Ø10 mm
• Included templates: standard figures for PVC and aluminium profiles
• Included cutter bits: 1 x Ø5 x L100 mm; 2 x Ø10 x L100 mm
• Cooling / lubrication: spray tool cooling and spray tool lubrication system
• Roller tables: 1 m on right and left sides
• Profile stops: manually adjustable stops on right and left
• Max. clamping capacity (W x H): 200 mm x 150 mm
• Mechanics: high precision bearing mechanism, gas shock absorbers, ergonomic arm design
• Typical operations: locking holes, drilling handles and hinges, espagnolette holes, water drain slot on PVC and aluminium profiles
