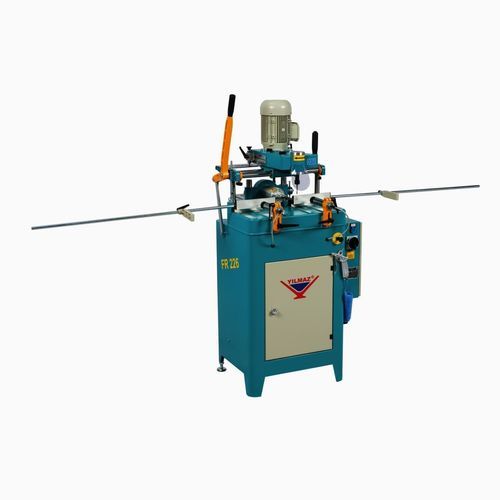

Automatic copy router FR 226 S

1-spindlefor PVCfor aluminum

Product information
FR 226 S is an automatic copy router designed for processing lock slots, drilling handles, hinges, espagnolette and barrel holes, and opening water drain slots on PVC and aluminium profiles up to 3 mm thickness. The machine is intended for industrial production of window and door hardware on profile sections.

General features

• Processing of lock slots and drilling of handles, hinges, espagnolette and barrel holes on PVC and aluminium profiles
• Hydro-pneumatic triple-hole drilling mechanism (2 x Ø10 mm + 1 x Ø13 mm)
• Cast aluminium main structure
• Corrosion-proof bearing shaft
• Robust steel-sheet machine stand
• Supplied with required cutter and drill tools

Standard accessories

• Spray lubrication system for saw blade
• Router cutter bit Ø5xL80 mm (included)
• Triple drilling tools (2 x Ø10 mm + 1 x Ø13 mm included)
• 2 profile stops (left and right)
• 2 pneumatic horizontal clamps
• Air gun

Optional accessories

• Spare router bit Ø5xL80 mm
• Spare drill bit Ø10 mm (for triple drill)
• Spare drill bit Ø13 mm (for triple drill)
• Special copy templates
• MA 240 centring apparatus
• MKN 150 length stop

Technical specifications table
Electrical: 2 x 750 W / 400V AC 3P+PE / 50/60 Hz.
Rotation speed (spindle): 14,000 / 900 RPM
Cutter (router) bit: Ø5xL80 mm (included)
Coolant / lubrication flow: 5 L/min
Operating pressure: 6-8 bar
Dimensions (LxWxH mm): 85 x 56 x 147
Weight (kg): 107.0

Characteristics / technical specifications

• Model: FR 226 S
• Primary application: lock slot milling, drilling of hardware elements (handles, hinges, espagnolette, barrel holes) and water drainage slot opening
• Suitable materials: PVC and aluminium profiles up to 3 mm thickness
• Drive power: 2 x 750 W
• Supply: 400V AC 3P+PE, 50/60 Hz
• Spindle speeds: 14,000 RPM and 900 RPM
• Router bit: Ø5xL80 mm (included)
• Triple drilling tools: 2 x Ø10 mm + 1 x Ø13 mm (included)
• Air/lubrication flow: 5 L/min
• Working pressure: 6-8 bar
• Overall dimensions (mm): 85 x 56 x 147
• Net weight (kg): 107.0
