CNC cutting and machining center AIM 3410

for aluminum profilesfor PVC profiles

Product overview

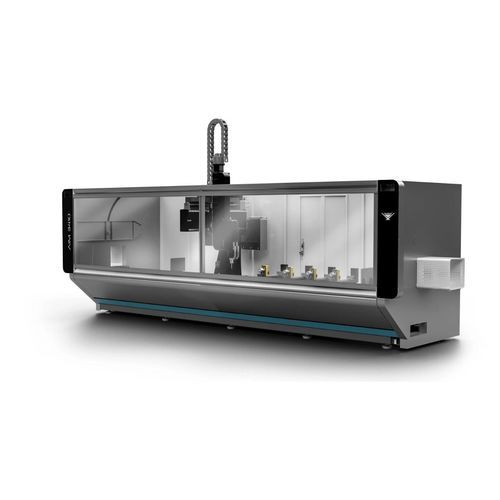

The AIM 3410 and AIM 3410 CBN are 4‑axis CNC machining centers designed for precision processing of aluminium and PVC profiles. The 4th axis enables operations on three profile surfaces. The movable in‑line tool magazine mounted on the machining head reduces tool change time and supports flexible production including façade profiles with the Ø180 mm saw. The machine includes automatic clamp recognition and a movable cabin with a transparent polycarbonate window for safe operator monitoring.

General features

• CNC motion control on 4 axes (4th axis for three‑surface machining)
• Movable in‑line tool magazine; capacity for 7 cutter tools + 1 saw (configuration may allow 8 tools)
• Automatic clamp recognition and automatic clamp positioning
• PLC‑controlled spray tool cooling unit
• Four automatic profile clamps as standard
• One pneumatic rest for X‑axis workpiece resetting (second rest optional)
• Cartridge lubrication system for X, Y and Z axes
• Manufacturer‑supplied CAM program and special CAM support
• Operator safety barrier and movable cabin with polycarbonate window
• 15" colour touchscreen; program import via USB; ISO "G" code compatible
• Technical support via remote connection; multi‑language interface
• Acoustic insulation cabinet option and LED lighting in the cabinet
• Solid steel machine body and dynamic gantry performance
• Optional handheld controller for dry‑run verification

Standard accessories

• Keyboard and mouse set for programming
• Safety fence around the machine
• 4 x profile clamps
• 1 x pneumatic rest on the left side
• Chip pan integrated in the machine frame

Optional accessories

• Cutter tools set and tool holders: 6 cutters (2 x Ø5, 1 x Ø6, 1 x Ø8, 1 x Ø10, 1 x Ø12); 8 x HSK F63 tool holders; 6 collets (3 x Ø5‑6, 1 x Ø7‑8, 1 x Ø9‑10, 1 x Ø11‑12); 4 mould height stops
• Second reference profile rest (right side) for standard machine
• Second reference profile rest (right side) for cabinetised machine
• Automatic tool length measurement device
• Special saw blade kit
• Handheld controller
• CAMQUIX 4 AXIS SOFTWARE (CAMPROX) for AIM 3410
• UNILINK ONBOARD 4 AXIS INTERFACE SOFTWARE (AIM 3410)
• Additional clamping unit for AIM 3410
• Barcode reader
• Air‑conditioning system for electrical cabinet
• Cabinetised version (AIM 3410 CBN)

Technical specifications table
Power supply: 11.5 kW / 25 A / 400 V AC 3P+PE / 50/60 Hz.
Drill/milling spindle speed: 3,000 RPM
Saw rotation speed: 24,000 RPM
Saw capacity: D Ø180 mm, bore Ø30 mm
Air flow / vacuum: 250 L/min
Working air pressure: 6‑8 bar
Dimensions (L×W×H): 241 × 516 × 285
Weight: 1,850 kg (gross) / 1,430 kg (net)

Technical specifications

• Model: AIM 3410 (also available as cabinetised AIM 3410 CBN)
• Control: 4‑axis CNC (4th axis for 3‑surface machining)
• Spindle speeds: milling 3,000 RPM; saw 24,000 RPM
• Electrical requirement: 11.5 kW / 25 A / 400 V AC 3P+PE / 50/60 Hz
• Saw blade: Ø180 mm (bore Ø30 mm)
• Tool magazine: movable in‑line on machining head; capacity 7 cutters + 1 saw (configurable)
• Automatic clamp recognition and positioning
• Standard: 4 automatic profile clamps
• Pneumatic rest for X direction (1 standard, 2nd optional)
• Cartridge lubrication for X, Y, Z axes; PLC spray cooling
• CAM software support; ISO G‑code programming; USB import
• Air consumption: 250 L/min; working pressure 6‑8 bar
• Dimensions as provided; machine weight listed above
• Safety: operator barrier, movable cabin with polycarbonate window, LED lighting, sound insulation cabinet
