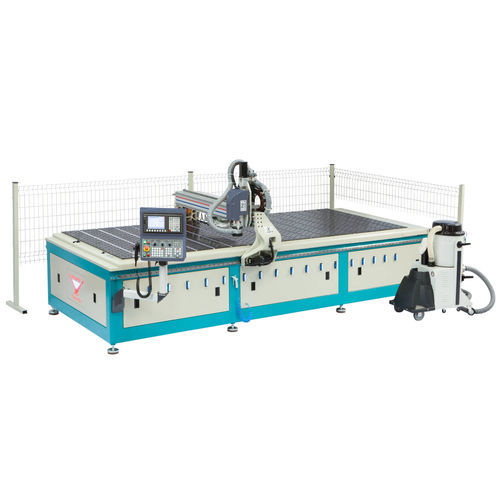

3-axis machining center CPM 4150 S

for PVCfor aluminumfor composites

Product overview
The CPM 4150 S is a 3‑axis CNC machining center designed to process composite panels, aluminium panels up to 4 mm thick and PVC panels. It performs joint grooving for panel bending, drilling, trimming and dimensioning to required sizes.

General features

• Automatic vacuum system concentrating suction on the machining area
• 3‑axis CNC control
• Solid steel frame and dynamic-performance gantry
• AlphaCAM support for special cutting operations with minimal scrap
• Patented Z‑axis heat compensation adjusting cutter position for spindle thermal growth
• High‑precision HSD spindle, 24,000 RPM
• 6‑station tool magazine mounted on the gantry for minimum tool-change time
• Pneumatic pop‑up stops for accurate panel locating
• Specially designed table and strong vacuum hold‑down for small parts
• Air‑cushion system to ease movement of large panels on the table
• Integrated tool length sensor for precise Z measurements
• Vortex head and vacuum extractor for optimized dust extraction
• PLC‑controlled tool cooling and colour control panel
• Hand‑held controller for job proving and USB program transfer
• Automatic central lubrication and operator safety barrier

Standard accessories

• AlphaCAM special CAM programs
• External chip removal system
• Air gun
• Z‑axis compensation system
• Spray tool cooling system
• Safety fence

Optional accessories

• Spare cutters
• Spare ISO 30 tool holders
• Spare collets

Technical specifications
Electrical: 400V AC 3P+PE / 50/60 Hz.
Spindle speed: 24,000 RPM
Vacuum flow: 80 L/min
Air pressure: 6-8 bar
Dimensions (LxWxH): 334 x 555 x 188
Weight: 2,010 Kg

Key technical details

• Type: 3‑axis CNC machining center for composite, aluminium (up to 4 mm) and PVC panels
• Spindle: HSD, 24,000 RPM
• Tool magazine: 6‑station on gantry
• Z‑axis: patented heat compensation and integrated tool length sensor
• Vacuum system: 80 L/min with vortex head
• Software: AlphaCAM support
