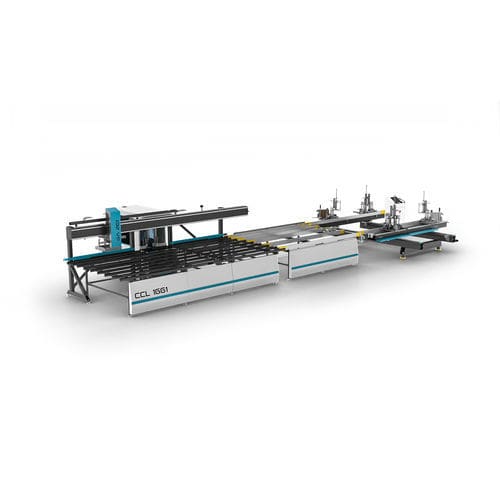

Corner welding and cleaning line CCL 1661

manualautomaticrobotized

Product overview
CNC‑controlled PVC four‑corner welding and corner cleaning line CCL 1661 designed for integrated welding, cooling, robot transfer and corner machining. After welding on the DK 540 the frame is automatically routed to the cooling unit (SA 251). The robot unit (SA 261) then transfers and rotates frames to the CNC corner cleaning machine (CNC 609 or CNC 611) to perform the corner cleaning cycle.

Technical specifications
Power supply: 12 kW / 400V AC 3P PE 50/60 Hz.
Spindle (end mill) speed: 6000 RPM
Saw/rotation speed: 18,000 RPM
Blade diameter / bore: D: Ø250 mm - d: 30/32 mm
Air flow / coolant: 150 L/min.
Air pressure: 6-8 bar
Dimensions (L x W x H): 2472 x 11725 x 207 (as listed)
Weight: 3931 / 3776 kg

General features

• Yılmaz custom profile cleaning program
• Manual and automatic operating modes
• Automatic sash and frame profile recognition
• Profile width and height measurement system
• 11 automatic profile cleaning knives
• Separate cleaning knives for colored and white profiles
• Automatic central lubrication system
• Windows‑based touch screen interface
• Profile program transfer via USB flash memory
• Remote connection and technical support capability
• Movable control panel
• Speed change during the process
• Processing capacity: 220 frames / 8 hours (with CNC 609) or 270 frames / 8 hours (with CNC 611)
• Visible screen alarms and warnings
• Phase control and low pressure control systems
• Ability to clean all four corners and end‑of‑line transfer with automatic profile rotation robot
• Automatic movement in 2 or 4 axes
• Automatic transition between 0.2 and 2.0 mm welding range (Yılmaz feature)
• Automatic operation integrated with barcode reader or manual operation by entered dimensions
• Lame sash door welding capability
• On‑screen welding parameter entry and storage
• Fast and easy Teflon replacement
• Capacity to store up to 1000 profile recipes
• Processing time monitoring during operation
• Easy placement of long profiles on the welding unit
• Millimetre or inch operation modes
• Max square dimension rotatable by SA 261: 2200 x 2200 mm (larger squares rotated manually during welding)

Standard accessories

• DK 540 Four‑head welding machine
• SA 251 Cooling unit
• SA 261 Robot mechanism
• CNC 609 Corner cleaning machine
• CNC 611 Corner cleaning machine
• Total of 11 tools: cleaning saw, internal scraping blades and milling cutters
• Brushed window support table

Optional accessories

• CS 240 Gasket pressing system
• DK 540 Welding fixture set for lame sash
• DK 540 Welding fixture set

Product video
Official product video available (YouTube).

Technical characteristics

• Model: CCL 1661
• Control: CNC controlled four‑corner welding and cleaning line; 2 or 4 axis movement
• Power / Consumption: 12 kW / 400V AC 3P PE 50/60 Hz
• Tool speeds: 6000 RPM (end milling), 18,000 RPM (saw)
• Blade diameter: Ø250 mm, bore 30/32 mm
• Air / coolant: 150 L/min, 6-8 bar
• Dimensions: 2472 x 11725 x 207
• Weight: 3931 / 3776 kg
• Throughput: 220 frames / 8 h (CNC 609) or 270 frames / 8 h (CNC 611)
• Automation: integrated cooling unit SA 251, robot transfer SA 261, barcode reader support, profile recognition and measurement, USB program transfer, remote support
• Tools: 11 automatic profile cleaning knives; separate knives for colored and white profiles; total 11 tools including cleaning saw, internal scraping blades and milling cutters
