Multifunction cutting and machining center AIM 4420

CNCfor aluminum profilesmild steel

Product overview

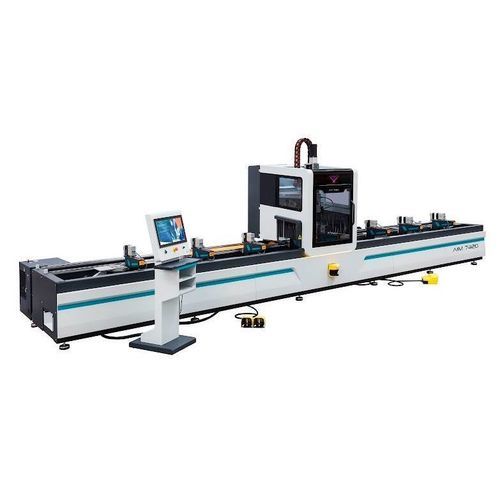

The AIM 4420 is a 4‑axis CNC profile machining and cutting center designed for aluminium and PVC profiles, low‑carbon alloys and thin‑walled steel profiles. The 4th axis enables machining on up to three profile surfaces. The machine accepts an 11‑tool magazine including a Ø180 mm saw blade and supports automatic clamp positioning via CAMPROX. Dual‑station automatic operation is available on AIM 7420 variants. A metal sound‑insulated cabin around the machining head enhances operator safety.

General features

• 4‑axis CNC motion for drilling, slotting, corner relief, sawing, tapping and flow drilling on profiles.
• 11‑position tool magazine including milling cutters and Ø180 mm saw.
• Automatic clamp recognition and positioning with CAMPROX software.
• Dual‑station automatic transfer option (AIM 7420) to reduce loading/unloading downtime.
• Flow drilling and rigid tapping capability (M4–M10) on specific encoder‑spindle models.
• PLC‑controlled 2‑output tool cooling and cartridge lubrication for X/Y/Z axes.
• 21" colour touchscreen, USB program import and remote technical support.
• Operator safety ensured by a 3‑zone field scanner and LED cabinet lighting.

Standard accessories

• CAMPROX CNC programming software.
• Keyboard and mouse set for programming.
• Safety fence around the machine.
• 4 pneumatic profile clamps (AIM 4420 standard).
• 2 pneumatic rests for X‑direction resetting.
• Chip pan integrated in the machine frame.

Optional accessories

• Cutter sets, tool holders and collets.
• CAD‑EXTRACT software for IGES files.
• Automatic tool length measurement device.
• Chip removal conveyor belt.
• Special saw blade kits and spare Ø180x5 d:Ø30 Z=45 blade.
• Hand‑held controller, additional clamps and barcode reader.

Technical specifications
Electrical: 18 kW / 400V AC 3P+PE / 50/60 Hz
Spindle (milling) speed: 3,000 RPM
Saw (rotation) speed: 20,000 RPM
Saw diameter / bore: D: Ø180 mm; d: Ø30–32 mm
Cooling / flow: 250 L/min
Air pressure: 6–8 bar
Dimensions (LxWxH mm): 180 x 590 x 275 (manufacturer units)
Weight: 3,050 kg / 2,850 kg (variants)

Applications

• Window & door profile machining, facade and curtain‑wall components.
• Industrial profile fabrication and assembly operations.
• Small‑batch and automated production lines requiring multi‑surface machining.
