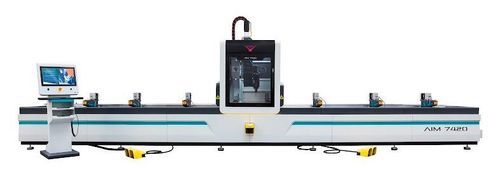

Multifunction cutting and machining center AIM 7420

CNCfor aluminum profilesfor PVC profiles

Product overview
AIM 7420 is a CNC-controlled 4-axis profile machining and cutting center engineered for machining aluminium and PVC profiles, low-carbon alloys and thin-walled steel profiles. The 4th axis enables machining on three profile surfaces. Dual-station operation allows continuous processing: while one station is machined, the operator readies the other station. CAMPROX provides automatic clamp recognition and positioning. The machine accepts up to 11 tools in the magazine, including a Ø180 mm saw blade. A metal sound-insulation cabinet around the machining head enhances operator safety.

Key features

• Four-axis CNC motion for machining holes, slots, corner reliefs, saw cuts, tapping and flow drilling on three profile surfaces.
• Dual-station operation for uninterrupted processing (AIM 7420 models).
• 11-position tool magazine including cutter sets and Ø180 mm saw tool.
• Flow drilling and rigid tapping M4–M10 with encoder spindle available on AIM 7420T variant.
• Automatic clamp recognition and positioning via CAMPROX software.
• Metal sound-insulation cabinet around the machining head for noise containment and safety.
• PLC-controlled 2-output tool cooling unit and cartridge lubrication for X, Y and Z axes.
• Standard 8 pneumatic profile clamps for AIM 7420 (4 for AIM 4420), expandable optionally; 2 pneumatic rests for X-direction resetting.
• 21-inch colour touchscreen, ISO 'G' code programming and USB program import.
• Remote technical support capability and multi-language interface.
• Operational safety ensured by a 3-zone field scanner system and LED cabinet lighting.

Standard accessories

• CAMPROX CNC programming software.
• Keyboard and mouse set for programming.
• Safety fence around the machine.
• 8 pneumatic profile clamps (for AIM 7420).
• 2 pneumatic rests.
• Chip pan in the machine frame.

Optional accessories

• Cutter tools, tool holders and collet sets.
• CAD-EXTRACT software for IGES files.
• Automatic tool length measurement device.
• Chip removal conveyor belt.
• Oil mist blower.
• Special saw blade kit and Ø180x5x d:Ø30 Z=45 spare saw blade.
• Hand-held controller.
• Adjustable clamp pressure system and additional clamps (4 pcs).
• Barcode reader.

Technical specifications
Electrical power: 18 kW / 400V AC 3P+PE / 50/60 Hz.
Milling spindle speed: 3,000 RPM.
Saw spindle speed: 20,000 RPM.
Saw blade dimension: D: Ø180 x d: Ø30 mm.
Cooling / air flow: 250 L/min.
Air pressure: 6–8 bar.
Dimensions (LxWxH): 180 x 885 x 275.
Product weight: 3810.0 kg.

Technical characteristics

• Model: AIM 7420 — 4-axis CNC profile machining and cutting center.
• Dual-station automatic operation for continuous processing.
• 11-position tool magazine including Ø180 mm saw.
• Automatic clamp positioning via CAMPROX; standard 8 pneumatic clamps (AIM 7420).
• Flow drilling and rigid tapping M4–M10 available on AIM 7420T.
• 21-inch colour touchscreen; ISO 'G' code programming; USB program import.
• Safety: sound-insulation cabinet and 3-zone field scanner.
• PLC tool cooling, cartridge lubrication for axes and LED lighting.
