Multifunction cutting and machining center AIM 3410 CBN

CNCfor aluminum profilesfor PVC profiles

Product Info

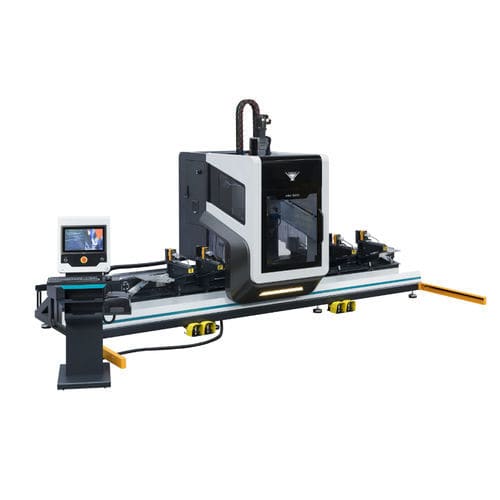

AIM 3410 and AIM 3410 CBN are CNC 4-axis machining centers engineered for milling, sawing and combined operations on aluminium and PVC profiles. The 4th axis enables machining on three profile surfaces. A movable in-line tool magazine with 8-tool capacity is mounted on the machining head to minimise tool change time. The machine includes a Ø180 mm saw suited for façade and profile cutting tasks. Automatic clamp recognition and positioning, a movable cabin with a transparent polycarbonate door and operator safety barrier ensure secure, observable operation.

General Features

• 4-axis CNC motion control for complex profile processing
• Movable in-line tool magazine: 8 tools (7 cutters + 1 saw blade) mounted on the head
• Automatic clamp recognition and automatic clamp positioning
• PLC‑controlled spray tool cooling unit
• Four automatic clamps standard to secure workpieces
• Pneumatic rest for X-direction workpiece resetting (1 standard, second optional)
• Cartridge lubrication system for X, Y and Z axes
• Dedicated CAM program developed by Yilmaz engineering team
• 15‑inch colour touchscreen; program import via USB; standard ISO G‑code programming
• Remote technical support capability and multi-language interface
• Special sound‑insulation cabinet (AIM 3410 CBN option) and LED cabinet lighting
• Solid steel construction with dynamic performance gantry
• Optional handheld controller for dry‑run verification

Standard Accessories

• Keyboard and mouse set for programming
• Safety fence around the machine
• 4 profile clamps
• 1 pneumatic rest on the left side
• Chip pan integrated in the machine frame

Optional Accessories

• Cutter tools, tool holders, collets and accessory sets (example set: 6 cutters — 2× Ø5, 1× Ø6, 1× Ø8, 1× Ø10, 1× Ø12)
• 8 pcs HSK F63 tool holders
• Collet sets (e.g. 3× Ø5‑6, 1× Ø7‑8, 1× Ø9‑10, 1× Ø11‑12)
• Mould height kits (4 pcs)
• Second reference profile rest on right side (standard and cabinetised options)
• Automatic tool length measurement device
• Special saw blade kits
• Hand‑held controller
• CAMQUIX 4‑axis software (CAMPROX) and UNILINK ONBOARD 4‑axis interface software
• Additional clamping unit (AIM 3410)
• Barcode reader
• Air‑conditioning for electrical cabinet
• Cabinetised version: AIM 3410 CBN

Technical specifications

• Electrical: 11.5 kW / 25A / 400V AC 3P+PE / 50/60 Hz
• Milling spindle speed: 3,000 RPM
• Tool/saw rotation speed: 24,000 RPM
• Saw blade: D Ø180 mm; bore Ø30 mm
• Air consumption: 250 L/min
• Pneumatic pressure: 6–8 bar
• Dimensions (manufacturer data): 241 x 516 x 285
• Weight (configurations): 1,850 kg / 1,430 kg
