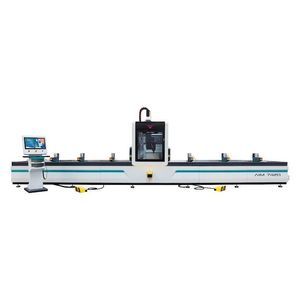

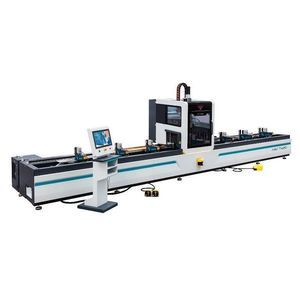

8-axis machining center PIM 6509

horizontalfor PVC11 tools

Product information

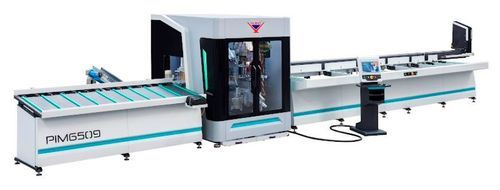

PIM 6509 is an 8-axis CNC machining center engineered for processing PVC window and frame profiles. The machine executes four-sided operations — milling, key‑hole openings, water slots, hinge and handle holes, marking and saw blade cutting — with simultaneous milling and cutting capability. A 7-profile automatic feeder and a 3-axis pneumatic gripper feed profiles into the machining area. Built-in optimization minimizes waste and the system supports barcode labelling for downstream welding and assembly.

GENERAL FEATURES

• 8-axis servo CNC control for synchronized motion
• Fully automated feeding, conveying, positioning, cutting and transfer units
• Four-sided processing: milling, key holes, water slots, hinge/handle holes, marking, saw cutting
• 3-axis pneumatic gripper for precise profile handling
• Horizontal and vertical clamping during sawing
• Processing capacity: 2,200–2,400 running meters / 8 hours
• Automatic conveyor with loading capacity of 7 profiles
• Servo-controlled down-cutting saw Ø550 mm, adjustable from 30° to 150°
• On-machine optimization to minimize profile waste
• Remote desktop connection for technical support
• User interface compatible with CAD and Windows PC with 15.6" touch LCD
• Easy integration with CNC welding, corner cleaning and screwdriving units
• Automatic frame and sash profile recognition (database-driven)
• Automatic lubrication and LED interior lighting
• Low-pressure control for saw safety

STANDARD ACCESSORIES

• 11 tools (milling cutters and drill bits)
• Barcode printer
• Safety fence around the machine
• Keyboard and mouse

OPTIONAL ACCESSORIES

• Angled swarf conveyor
• Workshop logistic equipment (see technical document)
• Spare Ø550 mm saw blade
• Spare cutter bits (see technical document)
• VCE 4000 chip vacuum extractor

TECHNICAL SPECIFICATIONS TABLE
Spindle / milling speed: 2,440 RPM
Saw rotational speed: 18,000 RPM
Saw blade diameter / bore: D: Ø550 mm · d: Ø30 mm
Air consumption / pneumatic: 250 L/min.
Overall dimensions (W x L x H): 279 x 1.344 x 231 (units as presented on source)
Machine weight: 3.650 Kg

CHARACTERISTICS / TECHNICAL SPECIFICATIONS

• 8-axis CNC servo control
• Feeding capacity: 7 profiles on automatic conveyor
• Processing capacity: 2,200–2,400 running meters per 8 hours
• 3-axis pneumatic gripper for profile handling
• Down-cutting saw Ø550 mm, rotation 30°–150°
• Simultaneous milling and cutting operations
• Dynamic optimization software to minimize waste
• Windows-based PC control with 15.6" touch monitor
• Remote desktop support
• Automatic lubrication system; LED interior lighting
