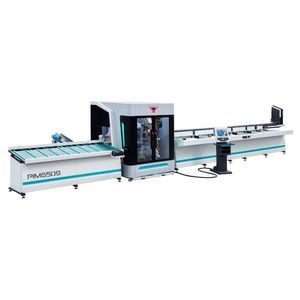

Multifunction cutting and machining center PIM 6508 SE

CNCfor PVC profiles

Overview
PIM 6508 SE is an 8-axis CNC machining center engineered to process PVC profiles on four sides. The machine executes milling, drilling (key holes, hinge holes, handle holes), water slots, marking and saw blade cutting. The integrated programming module optimizes nesting to reduce waste and increase throughput. An automatic feeding conveyor accepts up to 5 profiles while a 3-axis pneumatic servo gripper positions parts into the milling and cutting stations. The cutting unit performs serial cuts at angles between 45° and 135°. Operators can apply barcodes to processed profiles for downstream welding and assembly.

Operations and capabilities

• Four-side machining of PVC profiles: milling, drilling, key holes, water slots, hinge and handle holes, marking
• Saw blade cutting with down-cut configuration and indexed angle cutting (45°–135°)
• Simultaneous milling and cutting operations to improve cycle time
• Automatic barcode application for traceability and welding preparation

General features

• Fully automated feeding, conveying, positioning, cutting and transfer units
• 3-axis pneumatic servo gripper for precise profile handling
• Horizontal and vertical clamping during sawing operations
• Automatic in-feed conveyor with capacity for 5 profiles
• Servo-controlled down-cutting saw Ø 500 mm with 45°–135° rotation for serial angled cuts
• Windows-based PC with 15.6" LCD touch screen and CAD-compatible user interface
• Remote desktop access for technical support and diagnostics
• Automatic profile width and height measurement and control
• Cartridge and manual lubrication system
• Low-pressure safety control for the saw unit
• LED interior lighting
• Easy integration with CNC welding, corner-cleaning and screwing machines

Standard accessories

• 7 pcs x Ø5 mm milling/drilling tools (standard set)
• Barcode printer
• Safety fence around the machine
• Keyboard and mouse

Optional accessories

• Angled swarf conveyor
• Profile rotating mechanism
• VCE 3500 chip vacuum extractor
• Workshop logistic equipment (see technical documentation)
• Spare Ø 500 mm saw blade
• Spare Ø5xL95 mm carbide cutter bit

Product video
A product video demonstrating PIM 6508 SE operations is available.

Technical specifications

• Machine type: 8-axis CNC machining center for PVC profiles
• Supported operations: milling, drilling, slotting, marking and saw cutting on four sides
• Feeding conveyor capacity: 5 profiles
• Gripper: 3-axis pneumatic servo gripper
• Saw: Servo-controlled down-cutting blade Ø 500 mm, cutting angle range 45°–135°
• Tooling: 7 pcs Ø5 mm supplied (standard)
• Control: Windows-based PC with 15.6" touch LCD; CAD-compatible software
• Software features: programming for minimal waste, remote support
• Clamping: horizontal and vertical during sawing
• Measurement: automatic width and height control of profiles
• Lubrication: cartridge and manual systems
• Safety: low-pressure control for saw safety; safety fence included
• Lighting: LED interior lighting
• Integration: designed for integration with CNC welding, corner-cleaning and screwing machines
