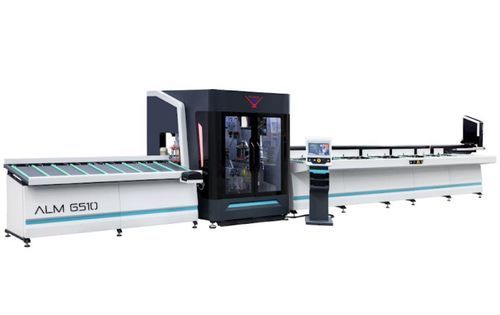

Multifunction cutting and machining center ALM 6510CNCfor aluminum profilesfor PVC profiles
Add to favorites
Compare this product
Characteristics
- Type
- CNC, multifunction
- Material to be tapped
- for PVC profiles, for aluminum profiles
Description
Product overview
ALM 6510 / ALM 6510 AT are 8-axis CNC machining and cutting centers designed for processing aluminium (and PVC) profiles. The machines perform multi-face operations including milling, key‑hole/hinge/handle drilling, water drain slotting, marking and saw cutting. A 7-profile automatic conveyor feeds profiles while a 3-axis pneumatic gripper positions each profile for simultaneous milling and cutting. The saw allows serial cuts between 45° and 135°. Barcode labeling is supported for downstream crimping and assembly traceability.
General features
Standard accessories
Optional accessories
Technical specifications
ALM 6510 / ALM 6510 AT are 8-axis CNC machining and cutting centers designed for processing aluminium (and PVC) profiles. The machines perform multi-face operations including milling, key‑hole/hinge/handle drilling, water drain slotting, marking and saw cutting. A 7-profile automatic conveyor feeds profiles while a 3-axis pneumatic gripper positions each profile for simultaneous milling and cutting. The saw allows serial cuts between 45° and 135°. Barcode labeling is supported for downstream crimping and assembly traceability.
General features
- 8-axis servo CNC motion control
- Fully automated feeding, carrying, positioning, cutting and transfer units
- Operations on four sides of aluminium/PVC profiles: milling, key/hinge/handle holes, marking, water drain slots, saw cutting
- 3-axis pneumatic gripper for precise profile handling
- Automatic horizontal and vertical clamping systems
- Processing capacity: 1,200–1,400 running metres per 8-hour shift
- Automatic conveyor with 7-profile loading capacity
- Servo-controlled down-cutting saw Ø550 mm — cutting range 45°–135°
- Windows-based PC with 15.6'' LCD touchscreen for operator interface
- Remote desktop connection for technical support
- Simultaneous milling and cutting capability
- User-friendly software compatible with CAD programs
- Automatic frame and sash profile recognition via database
- Automatic profile width and height dimension control
- Automatic lubrication and tool spray cooling systems
- Low-pressure safety control and LED interior lighting
Standard accessories
- 11 motors & tool holders for 90° and 45° milling operations
- Barcode printer
- Safety fence around the machine
- Keyboard and mouse
Optional accessories
- Angled swarf conveyor
- VCE 4000 chip vacuum extractor
- Workshop logistic equipment
- Spare saw blade Ø550 mm
- Spare Ø8 cutter bits
- Spare Ø5 cutter bits
- Additional motors & tools for water drain slot machining (ALM 6510 AT)
Technical specifications
- Electrical: 29 kW, 58 A / 400 V AC 3P+PE / 50/60 Hz
- Milling spindle speed: 3,000 RPM
- Saw spindle speed: 12,000 RPM
- Saw dimensions: D = Ø550 mm; d = Ø30 mm
- Air flow / vacuum: 250 L/min
- Air pressure: 6–8 bar
- Machine dimensions (L × W × H): 2000 × 1,172 × 2,310 mm
- Weight: 4,106 kg / 3,650 kg
