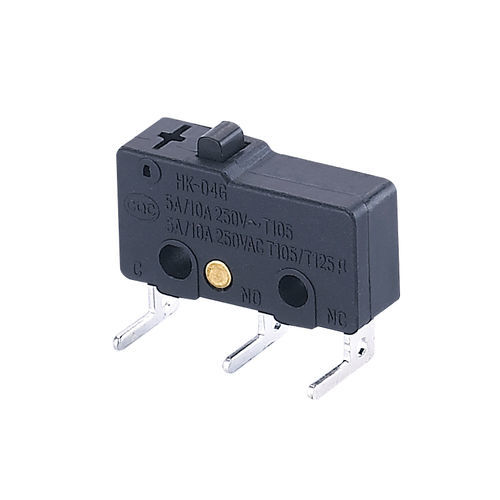

SPDT micro-switch HK-04G-3AZ-046

CQCC-US ULENEC

Product
HK-04G-3AZ-046

Key ratings / approvals

• Rated current options: 1 A, 5(1) A, 10 A
• Rated voltage: AC 125 V / 250 V; DC 12 V / 24 V
• Certifications: UL, cUL (CSA), VDE, ENEC, CQC, CE

Operating characteristics (definitions and values)
Free Position (FP): 12.1±0.2 mm
Operating Position (OP): 11.5±0.5 mm
Releasing Position (RP): 11.7±0.5 mm
Total Travel Position (TTP): 10.5±0.3 mm
Operating Force (OF): 1.0~3.5 N
Pre Travel (PT): 0.3~1.0 mm
Over Travel (OT): 0.2 mm (min)
Movement Differential (MD): 0.4 mm (max)

Switch technical characteristics
Electrical rating example: 5(2) A 250 VAC
Contact resistance: ≤50 mΩ (initial value)
Insulation resistance: ≥100 MΩ (500 VDC)
Dielectric voltage: 500 V (between non-connected terminals) / 1500 V (between terminals and metal frame)
Electrical life: ≥10,000 cycles
Mechanical life: ≥100,000 cycles
Operating temperature: -25 to 125 °C
Operating frequency: electrical 15 cycles; mechanical 60 cycles
Vibration proof: 10–55 Hz, 1.5 mm amplitude, three directions
Solderability & solder heat resistance as specified: solderability >80% coverage; dip soldering 260±5 °C 5±1 s; manual soldering 300±5 °C 2–3 s

Technical specifications

• Model: HK-04G-3AZ-046
• Rated current: 1 A, 5(1) A, 10 A
• Rated voltage: AC 125 V / 250 V; DC 12 V / 24 V
• Contact resistance (initial): ≤50 mΩ
• Insulation resistance: ≥100 MΩ (500 VDC)
• Dielectric strength: 500 V (between terminals); 1500 V (terminals to metal frame)
• Operating life: electrical ≥10,000 cycles; mechanical ≥100,000 cycles
• Operating temperature range: -25 °C to 125 °C
• Operating / travel parameters: FP 12.1±0.2 mm; OP 11.5±0.5 mm; RP 11.7±0.5 mm; TTP 10.5±0.3 mm; PT 0.3~1.0 mm; OT 0.2 mm (min); MD 0.4 mm (max)
• Operating force: 1.0~3.5 N
• Vibration: 10–55 Hz, 1.5 mm amplitude
• Certifications: UL, cUL (CSA), VDE, ENEC, CQC, CE
