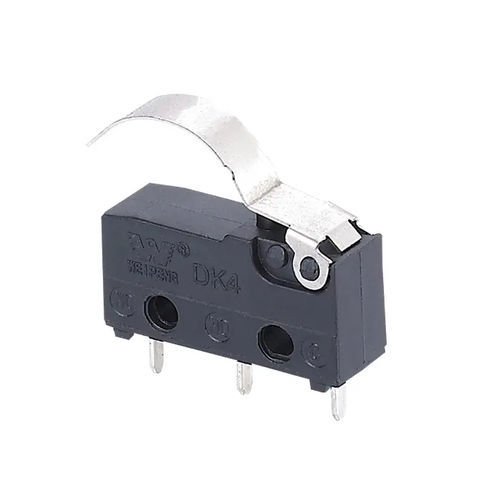

Lever switch DK4-AZ-018single-poleCQCC-US UL
Add to favorites
Compare this product
Characteristics
- Type
- lever
- Number of poles
- single-pole
- Norms
- ENEC, CQC, C-US UL
- Other characteristics
- AC, DC
- Primary current
Min.: 1 A
Max.: 10 A
- Voltage
Min.: 12 V
Max.: 250 V
- Diameter / length
19.8 mm
(0.8 in)- Operating temperature
Min.: -25 °C
(-13 °F)Max.: 105 °C
(221 °F)- Width
6.5 mm
(0.3 in)- Height
9.3 mm
(0.4 in)
Description
Current: 1A,5(1)A,10A
Voltage:AC 125V/250V, DC 12V/24V
Approved: UL,cUL(CSA),VDE,ENEC,CQC
Catalogs
No catalogs are available for this product.
See all of Yueqing Tongda Wire Electric Factory‘s catalogsOther Yueqing Tongda Wire Electric Factory products
Subminiature Basic Switches
