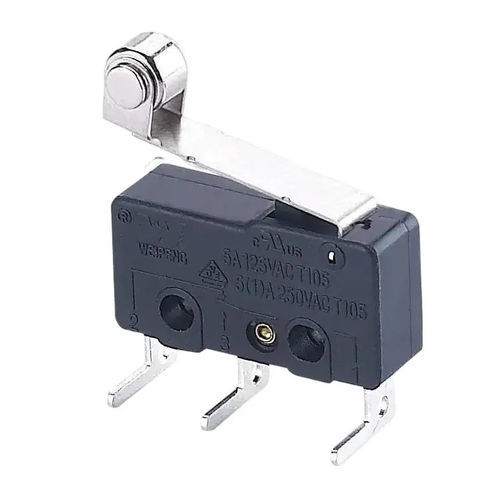

Lever micro-switch HK-04G-3AZ-047single-poleULCQC
Add to favorites
Compare this product
Characteristics
- Type
- lever
- Number of poles
- single-pole
- Protection level
- UL
- Norms
- CQC, ENEC, C-US UL
- Other characteristics
- AC, DC
- Primary current
Max.: 10 A
Min.: 1 A
- Voltage
Max.: 250 V
Min.: 12 V
- Diameter / length
19.8 mm
(0.8 in)- Operating temperature
Max.: 125 °C
(257 °F)Min.: -25 °C
(-13 °F)- Width
6.4 mm
(0.3 in)- Height
12.4 mm
(0.5 in)
Description
Printers, Normally Open and Normally Closed
Current: 1A,5(1)A,10A
Voltage:AC 125V/250V, DC 12V/24V
Approved: UL,cUL(CSA),VDE,ENEC,CQC
