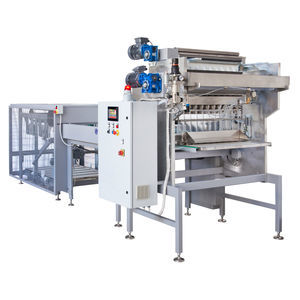

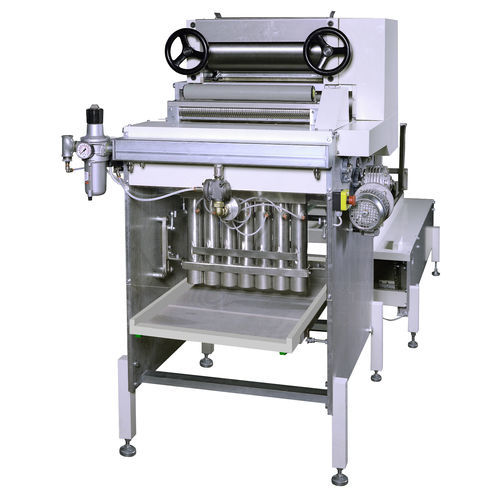

Nest pasta pasta forming machine NLA/600

single dough

Autonomous Machine for the manufacture of nests from a dough-sheet (coming out from a press or a kneader) or from a drawn, normally equipped with: • Calibrating unit with autonomous motorization, suitable to receive a 510 mm wide dough-sheet and reduce it to the requested thickness. • Unit for transversal cut of noodles or dough threads by means of a special device allowing the passing of threads with arrested knives and the cutting through a fast rotation of the blades. To rectify the nest weight, it is possible to vary, with operating Machine, the cutting length of noodles or drawn threads. • Nest-forming made inside special cups by means of compressed air jet, under PLC control of the Machine. A telescopic unit allows to approach the net during the forming phase and to move away during the phase of tray translation. • Advancement of 600 mm wide trays through autonomous motorization under PLC control, with advancement steps which are programmable according to the nest-shape, in order to quickly shift - for example - from the production of a round nest to an oval one. Machine pre-arranged to be equipped, according to the production needs, with: • different couples of cutting roller to effect, in synchronization with the calibration, the longitudinal cuts of the dough-sheets, cuts of the type: ◦ Parallel, according to any requested width. ◦ Undulated, to simulate the manual cut. ◦ Differentiated, to obtain different noodle widths inside the same nest, thus maintaining the same final weight of the various nests. ◦ Spur-shaped , to get an indentation in the cutting profile. ◦ Troccolo Pugliese .
