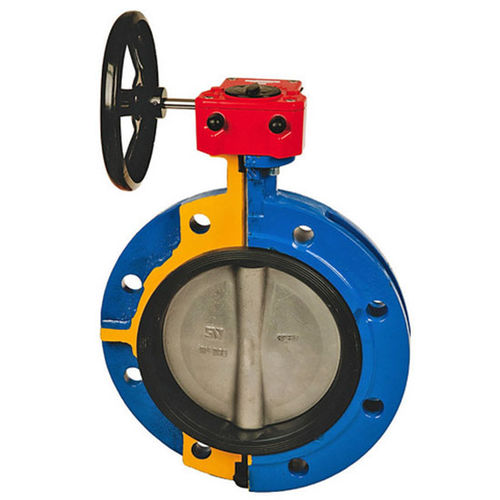

Double-flange valve zBUT 499butterflywith handwheelfor water
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Media
- for water, for steam, for compressed air
- Body
- double-flange, 1-piece, cast iron
- Applications
- for the chemical industry, industrial, for the food industry, for heating, for the petroleum industry, for shipbuilding
- DN
Min.: 15 mm
(0.591 in)Max.: 1,600 mm
(62.992 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 210 °C
(410 °F)
Description
Material: Grey cast iron, nodular cast iron
Working position: Any
Features
•high tightness
•seat materials EPDM/NBR/SILICONE/STEAM SILICONE/VITON/HYPALON/NEOPREN/FLUCAST
•central disc bearing
•environment-friendly
•one piece body
