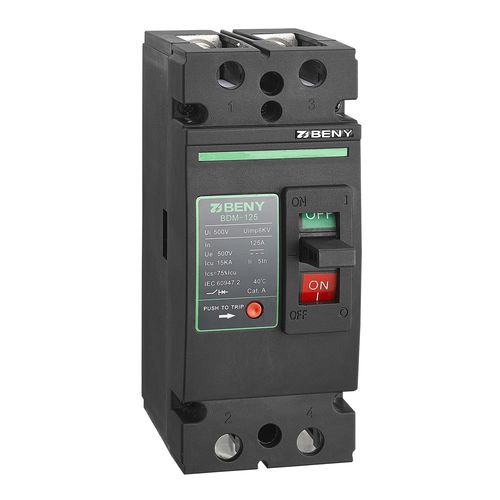

Thermal circuit breaker BDM-125
DCoverload2-pole

thermal circuit breaker
thermal circuit breaker
thermal circuit breaker
Add to favorites
Compare this product

Go to the Zhejiang Benyi Electrical Co.,ltd. website for more information

Characteristics

Type
thermal
Electrical characteristics
DC, overload, 2-pole
Operating mode
modular, automatic
Applications
for photovoltaic applications, for DC applications
Other characteristics
molded case, outdoor, indoor
Primary current

Min.: 0 A

Max.: 125 A

VDC

Min.: 0 V

Max.: 500 V

Description

Direct Current Molded Case Circuit Breaker for Solar PV Battery Energy Storage System (BESS) and UPS applications. The BESS systems including batteries requires reliable and safety protection and isolating devices. The ZJBENY BDM series DC circuit breakers meet IEC standards for protecting and isolating DC circuits up to 500V and 80A to 125A rated operating current. The BDM breakers have expanded applications including solar photovoltaic, electric vehicle charging stations, battery storage and UPS applications. Features of BDM series DC MCCB *IEC 60947-2 standard *IP65 UV resistance enclosure for outdoor installation is option *Can be applied in grounded or ungrounded systems *Tested to extreme ambient conditions from –40 to 85º C *Available up to 125A 500V * Lockable transparent cover * 5 years warranty for free replace
