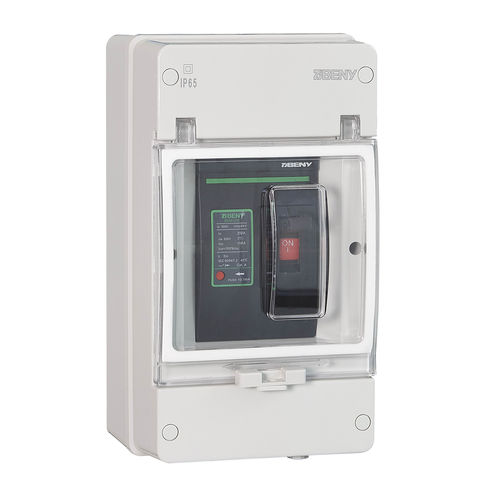

Thermal-magnetic circuit breaker BDM-250
overcurrentwith overcurrent protectionDC

thermal-magnetic circuit breaker
thermal-magnetic circuit breaker
Add to favorites
Compare this product

Characteristics

Type
thermal-magnetic
Electrical characteristics
overcurrent, with overcurrent protection, DC, 2-pole
Operating mode
modular
Other characteristics
molded case, MCB, outdoor
Applications
for photovoltaic applications, for DC applications
Current

Max.: 250 A

Min.: 80 A

VDC

500 V

Description

Direct Current Molded Case Circuit Breaker for Solar PV Battery Energy Storage System (BESS) and UPS applications. The BESS systems including batteries requires reliable and safety protection and isolating devices. The ZJBENY BDM series DC circuit breakers meet IEC standards for protecting and isolating DC circuits up to 500V and 80A to 250A rated operating current. The BDM breakers have expanded applications including solar photovoltaic, electric vehicle charging stations, battery storage and UPS applications. Features of BDM series DC MCCB *IEC 60947-2 standard *IP65 UV resistance enclosure for outdoor installation is option *Can be applied in grounded or ungrounded systems *Tested to extreme ambient conditions from –40 to 85o C *Available up to 250A 500V * Lockable transparent cover * 5 years warranty for free replace
