Relative pressure transmitter LFT6200

absolutepiezoresistive4-20 mA

Product overview

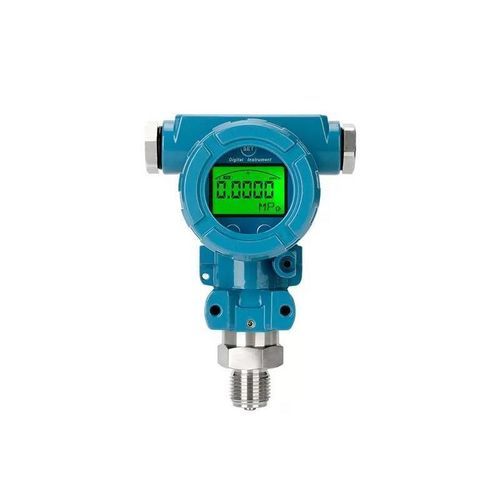

The LFT6200 is an isolated explosion-proof pressure transmitter for industrial gas and liquid pressure measurement (water, oil, mildly corrosive media). It features a 304 stainless-steel pressure head, a high-quality sensing element and a dedicated V/I conversion circuit for easy zero and span calibration. The unit is certified Exd IIc T6 Gb and offers multiple electrical and pressure-connection options.

Features

• Exd IIc T6 Gb explosion-proof construction.
• 304 stainless-steel pressure head (316L compatible option).
• Selectable pressure ranges from -100 kPa up to 60 MPa.
• Multiple output signals: 4–20 mA, 4–20 mA + HART, 0–10 VDC, RS-485.
• Configurable live display and various pressure connections (M20×1.5, G1/2).
• IP67 enclosure with waterproof cable outlet.

Specification
Pressure range: -100 kPa ... 0/10 kPa ... 60 MPa. Overpressure rating: 1.5× rated pressure. Accuracy (measured at 25 ℃): ±1.0% F.S; ±0.5% F.S; ±0.25% F.S (range dependent). Stability: <0.5% F.S per year. Operating temperature: -20 to 80 ℃. Storage temperature: -40 to 100 ℃. Measured media: gases or liquids compatible with 304 or 316L stainless steel, FKM (fluorine rubber) or NBR (nitrile rubber). Electrical configuration: 2‑wire / 3‑wire / 4‑wire. Output signals: 4–20 mA; 4–20 mA + HART; 0–10 VDC; RS-485. Power supply: 10–30 VDC / 14–36 VDC / 10–36 VDC (depending on wiring/output). Insulation: >100 MΩ @ 500 VDC. Dielectric strength: 500 VAC @ 60 s. Pressure type: Gauge (G) / Absolute (A). Pressure connection: M20×1.5, G1/2. ① Measured at 25 ℃ with combined accuracy of linearity, repeatability and hysteresis.

Characteristics / Technical specifications

• Model: LFT6200
• Explosion-proof grade: Exd IIc T6 Gb
• Pressure head material: 304 stainless steel (316L compatible)
• Pressure ranges: -100 kPa to 60 MPa (multiple selectable ranges)
• Accuracy options: ±0.25% F.S, ±0.5% F.S, ±1.0% F.S (range dependent)
• Output signals: 4–20 mA; 4–20 mA + HART; 0–10 VDC; RS-485
• Power supply: 10–36 VDC (configuration dependent)
• Ingress protection: IP67
• Electrical connection: waterproof cable outlet
• Pressure connections: M20×1.5; G1/2
