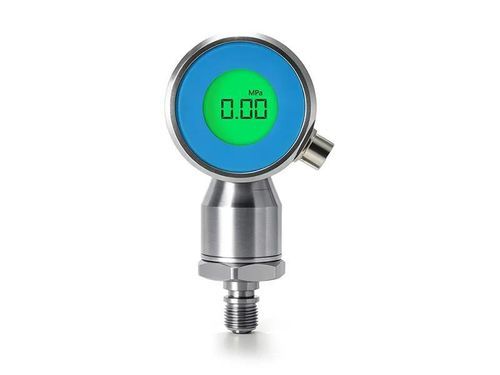

Sensitive element pressure transmitter LFT6720

RS-485Modbus RTU4-pole

Product Overview
LFT6720 is an intelligent digital pressure transmitter for real-time pressure monitoring and alarm display. The instrument uses an LCD with red/green bicolor backlight to indicate normal, under-pressure and over-pressure conditions at a glance. Available in axial and radial configurations, it incorporates a high-overload glass micro-melting sensing element and a dedicated conditioning circuit to output standard MODBUS-RTU signals via RS-485.

Features

• Core welded structure; axial or radial configuration
• Full-screen LCD with red/green bicolor backlight
• High-overload glass micro-melting sensing element
• Complies with GB25972-2024

Specifications

• Measurement range: 0–10 … 60 MPa
• Overload pressure: 2.0 × rated pressure
• Burst pressure: 3.0 × rated pressure (max 100 MPa)
• Accuracy: ±0.5% F.S.
• Stability: <0.3% F.S./year
• Operating temperature: -10 to 60 °C
• Storage temperature: -20 to 80 °C
• Medium: gases or liquids compatible with 304 stainless steel
• Output signal: RS-485 (MODBUS-RTU)
• Power supply: 10–30 VDC
• Electrical connector: M8 four-core aviation plug
• Protection rating: IP67
• Pressure ports: M10×1, M12×1, NPT 1/8
• Pressure type: Sealed pressure (S)
• Insulation resistance: ≥100 MΩ @ 500 VDC
• Dielectric strength: 500 VAC / 1 min
• Maximum power: <0.75 W
