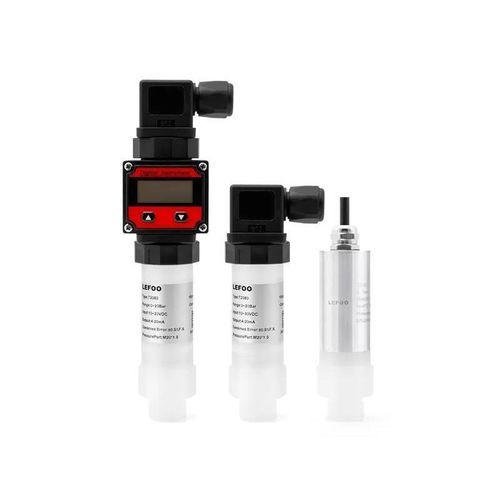

Relative pressure transmitter LFT2080

piezoresistiveceramic4-20 mA

Product overview
The LFT2080 anti-corrosion pressure transmitter integrates a ceramic piezoresistive sensing element with high overload capacity and corrosion-resistant wetted materials (1Cr18Ni9Ti, PVDF, fluoroelastomer, perfluoroether rubber). It uses ASIC digital compensation to deliver stable, repeatable pressure signals for aggressive media and sanitary applications such as water disinfection, chlorine systems, chemical processing, battery equipment, food hygiene and medical installations.

Key applications

• Water treatment and chlorination systems
• Chemical process lines handling strong acids or alkalis
• Battery manufacturing and testing equipment
• Food industry and medical/pharmaceutical pressure monitoring

Features

• Ceramic piezoresistive core compatible with corrosive media
• ASIC-based digital compensation for stable output and long-term drift control
• Compact footprint with high measurement accuracy
• Available 2-wire (4–20 mA) and 3-wire (voltage) configurations
• IP65 enclosure and multiple electrical/pressure connection options

Specifications

• Model: LFT2080
• Brand: LEFOO
• Pressure range: -100 kPa to 2 MPa (selectable series)
• Accuracy: ±0.5% F.S or ±1% F.S (measured at 25 °C; includes linearity, repeatability, hysteresis)
• Overload capacity: 1.5× rated pressure; Burst pressure: 2× rated pressure
• Output signals: 4–20 mA (2-wire); 0.5–4.5 V, 0–5 V, 0–10 V (3-wire)
• Power supply: 4.75–5.25 VDC / 8–36 VDC / 12–36 VDC (depending on output)
• Electrical connection: DIN43650A (Big Hirschmann) or M12 waterproof cable outlet
• Ingress protection: IP65
• Pressure ports: G1/2, M20×1.5
• Wetted materials: 1Cr18Ni9Ti (stainless steel), PVDF, fluoroelastomer, perfluoroether rubber
• Pressure type: Gauge (G)
• Certification: RoHS

Dimensions & mounting
Dimension drawing and mounting details supplied for installation reference; consult the product datasheet for electrical pinout and mounting torque values.
