Ball valve LFBV series

manualisolationexplosion-proof

Product overview

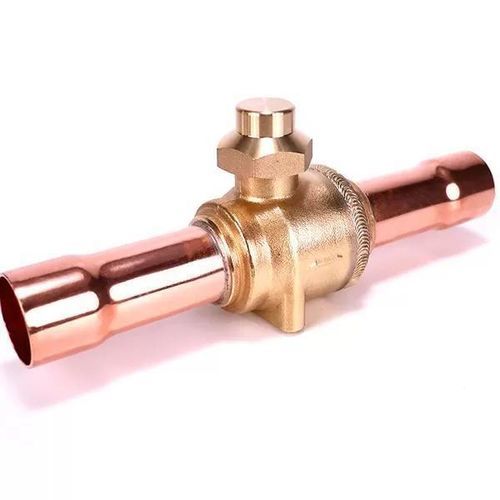

LFBV is a manually operated shut-off ball valve designed for liquid, suction and hot-gas pipelines in commercial air-conditioning and refrigeration systems. The valve stem opens or closes the internal flow path and the valve can be used as a maintenance valve for evacuation and refrigerant charging.

Key features

• Straight-through full-bore design to minimize pressure drop.
• Quarter-turn (1/4) operation from fully open to fully closed for quick control.
• Welded valve body and seat to prevent external leakage; chromium-plated ball and high-performance sealing ring; 100% leak tested.
• Bi-directional flow; explosion-proof valve stem design; charging-valve option available.
• Valve body equipped with bracket mounting holes for easy installation.

Parameters
Applicable refrigerants: common HCFC and HFC refrigerants and related oils
Max working pressure: 4.5 MPa
Max proof pressure: 6.5 MPa
Working temperature range: -40 °C to +120 °C
Typical installation positions: liquid line, suction and discharge ports, hot-gas line

Dimensions (selected models)
LFBV-6-1 / LFBV-6-2 — ODF 1/4 in — L 134 mm — H 51 mm — C 8 mm — h 22 mm — M4 — OD 13 mm — Kv 0.8 m³/h
LFBV-10-1 / LFBV-10-2 — ODF 3/8 in — L 134 mm — H 51 mm — C 8 mm — h 22 mm — M4 — OD 13 mm — Kv 3.8 m³/h
LFBV-12-1 / LFBV-12-2 — ODF 1/2 in — L 156 mm — H 51 mm — C 11.5 mm — h 22 mm — M4 — OD 13 mm — Kv 5.6 m³/h
LFBV-16-1 / LFBV-16-2 — ODF 5/8 in — L 156 mm — H 51 mm — C 13 mm — h 22 mm — M4 — OD 13 mm — Kv 10.1 m³/h
LFBV-19-1 / LFBV-19-2 — ODF 3/4 in — L 166 mm — H 60 mm — C 16 mm — h 29.7 mm — M4 — OD 19 mm — Kv 20.4 m³/h
LFBV-22-1 / LFBV-22-2 — ODF 7/8 in — L 184 mm — H 60 mm — C 20 mm — h 29.7 mm — M4 — OD 19 mm — Kv 28.2 m³/h
LFBV-28-1 / LFBV-28-2 — ODF 1-1/8 in — L 204 mm — H 79 mm — C 23 mm — h 38 mm — M4 — OD 24.5 mm — Kv 52 m³/h
LFBV-35-1 / LFBV-35-2 — ODF 1-3/8 in — L 244 mm — H 89 mm — C 25.5 mm — h 48 mm — M6 — OD 30 mm — Kv 80.9 m³/h
LFBV-42-1 / LFBV-42-2 — ODF 1-5/8 in — L 256 mm — H 110 mm — C 28 mm — h 55 mm — M6 — OD 36.5 mm — Kv 196 m³/h
LFBV-54-1 / LFBV-54-2 — ODF 2-1/8 in — L 303 mm — H 128 mm — C 35 mm — h 60 mm — M6 — OD 50 mm — Kv 248 m³/h
LFBV-67-1 / LFBV-67-2 — ODF 2-5/8 in — L 324 mm — H 147 mm — C 36 mm — h 92 mm — M6 — OD 60.5 mm — Kv 252 m³/h
LFBV-79-1 / LFBV-79-2 — ODF 3-1/8 in — L 371 mm — H 179 mm — C 42 mm — h 112 mm — M6 — OD 73 mm — Kv 279 m³/h

Documents
PDF: LFBV ball valve product datasheet
PDF: UL certificate — pressure switch LFBV
PDF: LFBV product documents

Technical specifications

• Brand: LEFOO
• Model series: LFBV
• Type: manual shut-off ball valve, full-bore
• Max working pressure: 4.5 MPa
• Max proof pressure: 6.5 MPa
• Working temperature range: -40 °C to +120 °C
• Operation: 1/4-turn manual
• Construction: welded body and seat; chromium-plated ball; high-performance sealing ring; 100% leak-tested
• Flow: bi-directional; explosion-proof stem; charging valve option
• Mounting: bracket mounting holes on valve body
