- ZHEJIANG LEFOO CONTROLS CO., LTD
Pilot-operated valve LFCVisolationthreadedY
Add to favorites
Compare this product
Characteristics
- Operation
- pilot-operated
- Function
- isolation
- Body
- threaded, Y
- Applications
- for refrigeration, for air conditioning, for HVAC installations
- Material
- copper
- Fluid specification
- for refrigerant fluids
- Other characteristics
- with seal, unidirectional, with threaded connection, with obturator
- DN
0.25 in
- Pressure
3 MPa
- Temperature
Min.: -25 °C
(-13 °F)Max.: 120 °C
(248 °F)
Description
Product description
Model Selection (table representation)
Note: Copper tube size accepts customization
Type A (Thimble Nut):
Type B (FHCS):
Type C (S17 Hexnut):
Technical Parameters
- One-way service valve with internal valve core.
- Intended for freezers, cold stores and air-conditioning units.
- Imported internal valve for reliable performance.
- Double sealing to ensure leak-tightness.
- Copper tube available in various lengths and hardness; tube size customizable.
- Knurled valve bonnet for easy handling.
Model Selection (table representation)
Note: Copper tube size accepts customization
Type A (Thimble Nut):
- 7/16-20UNF | 1/4" | R22 | Tubing Length A: 30 | Tubing Length B: | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 11 | Length L: 55.5
- 7/16-20UNF | 1/4" | R410A | Tubing Length A: 30 | Tubing Length B: | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 11 | Length L: 55.5
- 7/16-20UNF | 1/4" | R22 | Tubing Length A: 50 | Tubing Length B: | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 11 | Length L: 55.5
- 7/16-20UNF | 1/4" | R410A | Tubing Length A: 50 | Tubing Length B: | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 11 | Length L: 55.5
- 7/16-20UNF | 1/4" | R22 | Tubing Length A: 35 | Tubing Length B: 24 | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 11 | Length L: 60.5
Type B (FHCS):
- 7/16-20UNF | 1/4" | R22 | Tubing Length A: 30 | Tubing Length B: | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 11 | Length L: 55.5
- 7/16-20UNF | 1/4" | R410A | Tubing Length A: 30 | Tubing Length B: | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 11 | Length L: 55.5
- 7/16-20UNF | 1/4" | R22 | Tubing Length A: 50 | Tubing Length B: | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 11 | Length L: 55.5
- 7/16-20UNF | 1/4" | R410A | Tubing Length A: 50 | Tubing Length B: | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 11 | Length L: 55.5
- 7/16-20UNF | 1/4" | R22 | Tubing Length A: 35 | Tubing Length B: 24 | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 11 | Length L: 60.5
Type C (S17 Hexnut):
- 1/2-20UNF | 1/4" | R410A | Tubing Length A: 30 | Tubing Length B: | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 14 | Length L: 55.5
- 1/2-20UNF | 1/4" | R410A | Tubing Length A: 35 | Tubing Length B: 24 | Nozzle: 6.35 | Y/N Limitation: Y | Hexagonal S: 14 | Length L: 60.5
Technical Parameters
- Applicable Refrigerant: HCFC or HFC
- Applicable Medium Temperature: -25℃~+120℃
- Max. Operating Pressure: 3.0MPa
- Max. Allowable Pressure: 4.5MPa
Catalogs
No catalogs are available for this product.
See all of ZHEJIANG LEFOO CONTROLS CO., LTD‘s catalogsOther ZHEJIANG LEFOO CONTROLS CO., LTD products

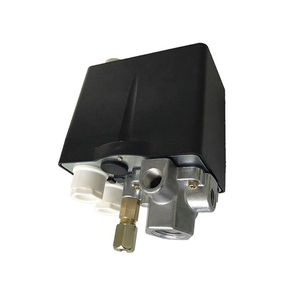

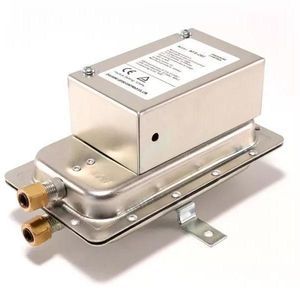

Mechanical Pressure Switch
