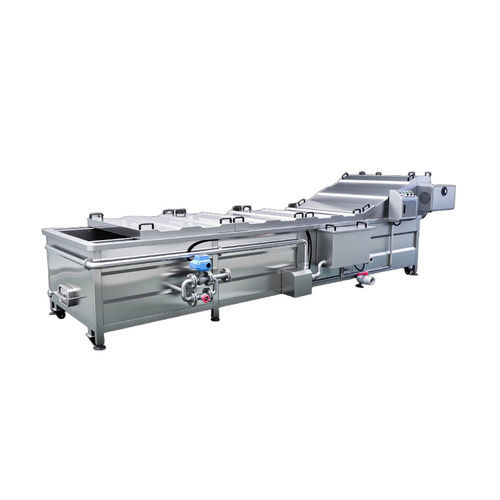

Tunnel pasteurizer electricsteamfor the food industry
Add to favorites
Compare this product
Characteristics
- Technology
- tunnel
- Energy source
- steam, electric
- Applications
- for the food industry, for the beverage industry, for milk, for dairy products, fruit, meat, vegetable, for jam
- Operational mode
- automatic, continuous, in-line
- Other characteristics
- custom, horizontal, liquid bath
Description
Product overview:
The water bath pasteurizer is designed for continuous pasteurization of foods packaged in soft bags/pouches and certain canned products. Constructed mainly from SUS304 stainless steel, the unit offers automatic water temperature control and frequency-converter speed adjustment to match process requirements. Heating can be provided by steam (most common), electric heating, or a thermal oil furnace, and the machine is customizable for different products, throughputs and process parameters.
Main specifications:
Features:
Applications:
Technical specifications:
The water bath pasteurizer is designed for continuous pasteurization of foods packaged in soft bags/pouches and certain canned products. Constructed mainly from SUS304 stainless steel, the unit offers automatic water temperature control and frequency-converter speed adjustment to match process requirements. Heating can be provided by steam (most common), electric heating, or a thermal oil furnace, and the machine is customizable for different products, throughputs and process parameters.
Main specifications:
- Length: customizable (3500–11800 mm)
- Power: 0.75–2.5 kW
- Conveyor widths available: 800 / 1000 / 1200 / 1500 mm
- Heating methods: steam / electric / thermal oil furnace
- Main material: SUS304 stainless steel (except motor and transmission parts)
- Speed control: frequency converter
- Maximum temperature: 98°C
- Exhaust chimney diameter: Φ20 cm (customizable)
Features:
- Adjustable pasteurization temperature from ambient up to 98°C to meet different product requirements.
- Sterilization time controlled via conveyor speed using a frequency converter for precise dwell time.
- Compatible with multiple heat sources: steam (typical), electric heating, or thermal oil furnace depending on installation.
- Hygienic construction in SUS304 stainless steel for food-industry compliance (motor and transmission excluded).
- Fully customizable dimensions and configuration according to product size, sterilization time and output.
Applications:
- Suitable for pasteurization/sterilization of pickled vegetables, dairy products, beverages, tofu, jam, fruit puree, mayonnaise, crab meat and similar foods.
- Optimized for products in soft bags/pouches; also applicable to selected canned items.
Technical specifications:
- Model / Type: Water bath pasteurizer (WB-P)
- Material: SUS304 stainless steel
- Length: customizable (3500–11800 mm)
- Conveyor widths: 800 / 1000 / 1200 / 1500 mm
- Power range: 0.75–2.5 kW
- Maximum temperature: 98°C
- Heating methods: steam / electric / thermal oil furnace
- Speed control: frequency converter
- Control: temperature controller for automatic water regulation
- Exhaust: chimney Φ20 cm (customizable)
