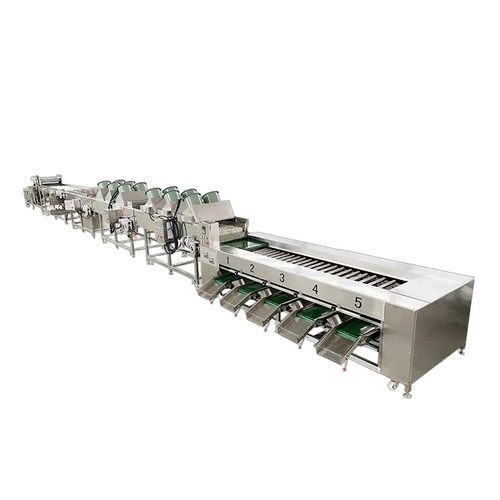

Potato processing line

root vegetablewashingsorting

Introduction
The potato grading line is a modular, automated processing line designed to clean, wash, optionally peel, grade and dry potatoes by size or weight. It replaces intensive manual sorting with standardized machine operations to improve throughput, consistency and hygiene.

Process flow and functions

• Soaking and lifting: Lift potatoes from the hopper while pre-soaking to loosen surface soil, facilitating subsequent cleaning. Machine: soaking hoister.
• Manual sorting station: Operators remove damaged or spoiled potatoes and large debris on a sorting conveyor. Machine: sorting conveyor (manual inspection station).
• Spray & bubble washing: Combine high-pressure spray nozzles and air bubble action to remove sediment and impurities from tuber surfaces. Machine: bubble washer machine.
• Washing and peeling (optional): Brush-roller friction can remove skin for peeling; alternatively soft brush rollers perform gentle washing without peeling. Rinse is integrated with high-pressure spray. Machine: continuous washing and peeling machine or soft brush washer machine.
• Grading: Classify potatoes by diameter or weight and discharge into size-specific lanes for processing or sale. Machine: potato sorting machine.
• Air drying: Multi-angle air blowing during conveyor transport reduces surface moisture before packaging or storage. Machine: air dryer.

Typical machines mentioned

• Soaking hoister
• Sorting conveyor (manual inspection station)
• Bubble washer machine
• Continuous washing and peeling machine
• Soft brush washer machine
• Potato sorting machine
• Air dryer

Key benefits

• Automated cleaning, grading and sorting reduces dependence on manual labor and speeds throughput.
• Bubble washing combined with high-pressure spray improves removal of soil and surface impurities.
• Brush-roller options allow either peeling or gentle washing depending on product requirements.
• Grading by diameter or weight enables consistent sizing for industrial processing or fresh-market packing.
• Air drying prepares tubers for immediate packaging, storage or downstream processing.

Technical specifications

• Application: Automated potato cleaning, washing, optional peeling, grading and drying production line.
• Sorting criteria: Size (diameter) or weight; configurable size ranges and discharge lanes.
• Cleaning methods: Soaking, spray & bubble washing, high-pressure spray rinsing.
• Peeling method: Rotational friction of brush rollers (optional; line can operate as washing-only).
• Drying method: Multi-angle air blowing during conveyor transport.
• Typical components: hopper and soaking hoister, sorting conveyor (manual inspection), bubble washer, continuous washer/peeler or soft brush washer, potato sorting machine, air dryer.
• Primary purpose: Standardize and automate high-intensity manual sorting for stable output and improved processing efficiency.
