Boxing sausage production line

cuttingfillingportioning

Overview

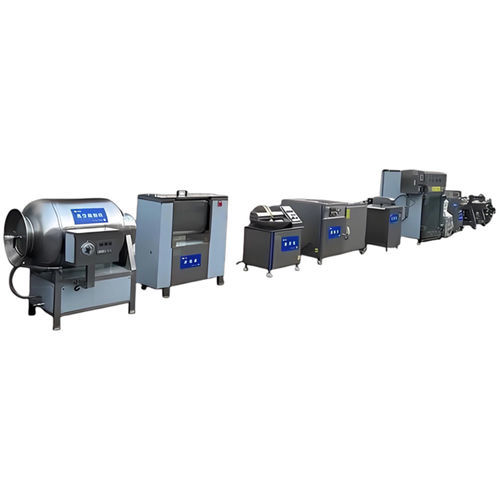

The SP-1000 sausage production line is a modular industrial line composed of sequential machines that perform raw material processing, stuffing, tying, maturation and packaging. Each module can be selected and configured to match required capacity and product specifications.

Main categories and equipment

• Raw material processing equipment
  • Vacuum tumbler: performs dynamic tumbling under vacuum to accelerate brine and seasoning penetration and shorten pickling time.
  • Meat grinder: reduces large meat pieces to defined particle sizes for subsequent processing.
  • Bowl cutter: high-speed blade rotation chops, mixes and emulsifies meat to improve texture and binding.
  • Meat mixer: ensures homogeneous blending of meat, fat and seasonings for consistent product composition.
• Filling and tying equipment
  • Sausage filler: volumetric or hydraulic fillers deposit meat mix into casings with adjustable portioning.
  • Sausage tying machine: automated tying with food-grade twine for secure closures prior to smoking or drying.
• Maturation and packaging equipment
  • Smoker: integrated steaming, smoking and drying with programmable control of temperature, time and humidity.
  • Packaging machine: vacuum packaging units to extend shelf life and reduce oxygen exposure.
  • Sterilizer retort: high-temperature thermal processing to achieve sterilization and prevent secondary contamination.

Customization
Modules, sequence and individual machine models can be configured to the target throughput, casing type and product recipe. Integration and automation level (manual, semi-automatic, fully automatic) are selectable.

Technical specifications

• Modular production line comprising standardized machines arranged in process sequence.
• Key components: vacuum tumbler, meat grinder, bowl cutter, meat mixer, sausage filler, tying machine, smoker, vacuum packaging unit, sterilizer retort.
• Vacuum tumbling for improved brine penetration and reduced pickling time.
• Bowl cutter provides high-speed cutting, mixing and emulsification to optimize texture and sliceability.
• Smoker offers programmable steaming, smoking and drying cycles with temperature and humidity control.
• Vacuum packaging and retort sterilization for extended shelf life and contamination control.
• Capacity, automation level and machine specifications customizable to production requirements.
