non-contact measuring system / thickness / eccentricity / for tubes
UMAC® WALLMASTER

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
non-contact measuring system non-contact measuring system - UMAC® WALLMASTER
{{requestButtons}}

Characteristics

  • Measured physical value:

    thickness, eccentricity

  • Measured material:

    for tubes, for cables

  • Other characteristics:

    non-contact

Description

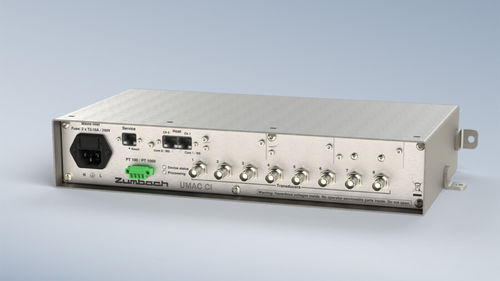

UMAC® represents a complete line of non-contact ultrasonics based systems for wall thickness measurement and control of pipe, hose, tubing and cables. The heart of each system consists of a highly developed UMAC® measuring system, interrogating up to 16 sensors at high speed. WALLMASTER systems process data from several ODAC® measuring heads and a UMAC® Wall Thickness and Eccentricity System located immediately after the extruder. Automatic closed-loop control of wall thickness and/or diameter is easily possible.

Ultrasonic Measurement Principle
It is based on the time difference (t2) of the sound echoes from the surface and the inner side of the product. A piezoelectric crystal is excited by a sort electrical pulse. The crystal converts electrical energy into mechanical energy, i.e. sound waves. When the sound waves encounter a difference in the propagation medium (for instance when passing from water to a synthetic material), a part of them is reflected back to the crystal (echo).
Wall thickness = Sound velocity of material x t2 x 0.5
