GEMS hydraulic fittings

Diameter: 6 in
Operating pressure: 250 psi

Series 3C Warrick Electrode Fittings are side chamber fittings that are cast iron or brass, pressure-tight chambers containing up to 4 probes from 1-1/2 inch (38 mm) to 6 inches (152 mm) in length. Pipe ...

Diameter: 0.375 in
Operating pressure: 250 psi - 500 psi

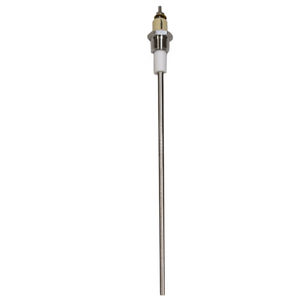

Series 3B Warrick Electrode Fittings are compact pressure tight assemblies that hold a single electrode probe for use in water and chemicals. These electrode fittings incorporate a 1/4-20 female thread ...

Diameter: 1 in - 3 in
Operating pressure: 125 psi

Series 3E Warrick Electrode Fittings are cast metal, pressure-tight assemblies capable of holding 1-7 probes. Fittings are attached to vessels via male NPT mounting. Series 3E Fittings ...

Diameter: 3 in

Series 3F Warrick Electrode Fittings are flanged, pressure-tight fittings can handle up to 7 probes and are designed for general purpose service. They mate with standard pipe flanges coupled to the top ...

Diameter: 2 in

Series 3G Warrick Electrode Fittings are designed for general purpose use and are made of PVC to withstand corrosive conditions. The flanged assemblies are sized to accommodate up to 7 probes and to mate with standard ...

Diameter: 0.375 mm
Operating pressure: 250 psi

Series 3H Warrick Electrode Fittings feature a one-piece electrode core which can be trimmed to length in the field. One-piece construction simplifies installation. Series 3H fittings are available with ...

Diameter: 1 in

... Warrick Electrode Fittings have a 1" NPT body and housing and are designed for applications where multiple probes are required in a small, non-pressure location. (For single probe applications, Gemsâ„¢ recommends using ...

Diameter: 13 in
Operating pressure: 250 psi

Series 3K Warrick Electrode Fittings contain up to 4 probes and accommodate probes from 1-3/4" (44 mm) to 13" (330 mm) in length. Additional tappings are available for tricocks and gauges. External Side Mounting Cast ...

Diameter: 12 in
Operating pressure: 150 psi

Series 3L Warrick Electrode Fittings have a 1/8" NPT bushing and are rated for up to 150 psi (10 bar). Series 3L is U.L. recognized. • 1/8" NPT • Brass or Cast Iron Housing • Single Probe

Diameter: 12 in
Operating pressure: 150 psi

Series 3M Warrick Electrode Fittings are designed for use in food, beverage and pharmaceutical applications where cleanliness is vital, Series 3M fitting assemblies are made of FDA-approved materials ...
