Rollon’s Telescopic Rail family improves upon all of the characteristics that made our Heavy Duty rails so popular. The Telescopic Rail family offers various types of slides which means that a design engineer can easily find an original solution for each application. All of the products have innovative problem solving designs, and are built to extend heavy loads out from their mounting structure with little or no deflection.
|
|
|
Accuride slides are built into many industrial applications such as commercial and industrial machinery, electronic units and test equipment, and into a variety of transport applications such as emergency vehicles and trucks as well as aircraft, trains, ships and boats.
|
|
|
Schock has been manufacturing ball bearing slides for over 30 years. Our experience and trend-setting achievements have established a brand as an industry leader: the precision slide. The unique physical properties of the ball bearing slide form the basis for the system superiority. Schock provides a reference point in the market by setting the highest standards for quality.
|
|
Thomas Regout International BV, founded in 1834 and based in Maastricht-Netherlands, produces a wide range of telescopic slides. Thomas Regout's slides can be used for all different types of applications, such as the furniture, professional storage, automotive, trade and industry markets.
Besides our wide range of stock-items, we are also specialized in custom made solutions. We can offer you a high quality product range with different kinds of features according to your needs.
|
|
|
Linear ball slides offer precise and low friction movement to guide and support moving mechanisms. No lubrication is necessary for life up to 10,000,000 inches of travel
|
|
CHAMBRELAN designs, produces and sales a very wide range of industrial BALL BEARING TELESCOPIC SLIDES, suited for length from 100mm up to 2 meters with a load capacity from some kg up to 1 ton.
The standard models AVAILABLE ON STOCK cover most of the common uses. However, some slides can be CUSTOMIZED to meet special demands (oven appliances for example).
Our design and production abilities allow us to meet particular demands on ROLLING STOCK INDUSTRY, TRUCK BODY BUILING, MILITARY and MEDICAL uses on every continent.
|
|
LBS-11 (3/4) Extension Ball Bearing Slide
LBS-11- LO (3/4) Extension with Lock-Out Ball Bearing Slide
LBS-12 Full Extension Ball Bearing Slide
LBS-12-LO Full Extension with Lock-OutBall Bearing Slide
|
|
Excellent Accuracy Precise, Rigid, and Lowest Noise

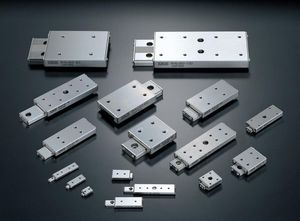

The highly precise and rigid NB Slide Way incorporates cylindrical rollers in two 90 degrees V-grooved rails. Designed for advanced technological applications, the Slide Way can bear loads and moments from all directions while maintaining extreme accuracy. The lowest frictional resistance and noise are achieved with "super precision" cylindrical rollers and "high accuracy" raceway surfaces.
|
|
|
Normont offers an extensive line of transportation slides. Our inventory of Accuride extension slides feature high load capacities and are available in many lengths, travel ranges and load ratings.
|
|
Nadella Linear System
With this line of products, NADELLA confirms the aim to provide manufacturing solutions tailored to the user’s needs in order to achieve simple automation at a low cost. The process under way of transferring production automation and relevant handling onto increasingly heavier and cumbersome units has prompted us to seek original and flexible components for the different commodity sectors.
|
|
The NB slide way is a non-recirculating linear motion bearing utilising precision rollers. It is used primarily in optical and measurement equipment, where high precision movement is required.

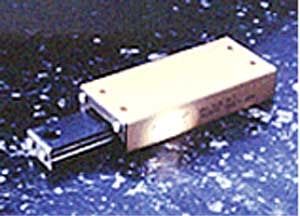

The NB slide table is a precision table equipped with a slide way. Its high-precision and low friction characteristics make it well suited for use in electronics automatic assembly machinery and optical devices.
The NB gonio way is a curved SV type slide way. It is used when there is a need to change the gradient, or obtain an accurate gradient angle without changing the center of rotation in high-precision optical and measurement devices.
|
|
|
The SR series slides are formed by a fixed rail and an inner mobile rail of the same length. An intermediate ball-cage allows for extension of approximately half the rail length in both directions creating a total stroke.
|
|
Japanese manufacturer, Sugatsune, has a wide range of slides for industrial or furniture applications.
Range includes stainless steel, full extension, 3/4 extension, heavy duty, easy-release, ball bearing, etc.
Please visit web site or view the PDF Catalogue files here.
sugatsune.co.jp (Sugatsune Japan)
sugatsune.com (Sugatsune America)
sugatsune.net (Sugatsune America-Industry)
Three Member Drawer Slides Two Member Drawer Slides Four Member Drawer Slides Ball Bearing Drawer Slides Linear Slides© 2002-2006 Sugatsune USA Toll Free 1.800.562.5267
|
|
Thomas Regout, known as an innovative supplier in telescopic slides, has developed an aluminum slide. This slide weighs circa 200% less than the standard steel ones, and for that reason offers considerable weight reduction advantages. The slide has a similar design as the existing ULF HD slide and is featured by the following technical specifications:
- Cycles: 30000
- Load capacity: 41 kg
- Travel: 100%
- Features: Disconnect, hold out, lock in. hold in
The aluminum disconnect offers a lot of advantages, because of the light material and the easy remove function of the inner profile. Only with one push on the spring you can remove the drawer from the cabinet.
|
|
|
|
|
|
Corrosion resistant slides
Stainless steel
DS5321
Heavy duty with hold-in
•Load ratings
•10,000 cycles up to 180kg
•80,000 cycles up to 160kg
•100%+ extension
DS0330
Medium duty with hold-in
•Load rating up to 65kg (80,000 cycles)
•100% extension
DS2728
Light duty slide with hold-in
•Load rating up to 20kg (80,000 cycles)
•75% extension
•9.5mm slide thickness
•Hold-in
•6 lengths 250 - 500mm
DS2028
A 75% extension slide that provides a good value alternative where full extension is not required.
•Load ratings
•10,000 cycles up to 65kg
•80,000 cycles up to 45kg
•Hold-in
•9.5mm slide thickness for narrow side space
DS5322
A heavy duty slide with an optional bracket system for easy installation and removal.
•Load rating up to 120kg (80,000 cycles)
•100%+ extension
•Hold-in
Aluminium
Sometimes weight is an important factor in choosing a component. This aluminium slide weighs 60% less than the standard zinc or stainless steel 5321.
DA5321
•Load rating up to 50kg (40,000 cycles)
•100%+ extension
•Stainless steel ball retainer and ball bearings
•Hold-in
DA4120
•Load rating up to 438kg (10,000 cycles)
•75% extension
•Aluminium slide with stainless steel ball retainer and ball bearings
•Slides sold singly
•9 lengths, 400 – 1200mm
DA4140
•Load rating up to 400kg (10,000 cycles)
•100% extension
•Aluminium slide with stainless steel ball retainer and ball bearings
•Slides sold singly
•10 lengths, 400 – 1500mm
All these products are held in stock and are available through Accuride’s Quick Ship programme.
|
|
|
Schock is your engineering partner for linear movements in cold, hot and wet environment. In case of cooling and refrigerating, baking, or dishwashing: The Schock telescopic ball bearing slide guarantees for a smooth movement and a long life durability.
|
|
