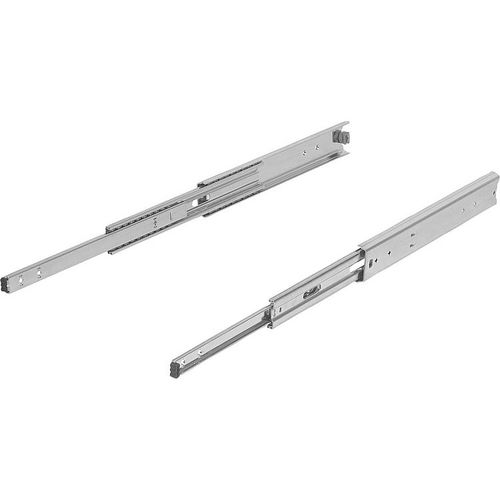

Telescopic linear slide 21335-05over-extensioncaged ballheavy-duty
Add to favorites
Compare this product
Characteristics
- Extension
- telescopic, over-extension
- Type
- caged ball
- Other characteristics
- heavy-duty, steel
- Load
Min.: 78 kg
(172 lb)Max.: 100 kg
(220.5 lb)- Stroke
Min.: 340 mm
(13.4 in)Max.: 733 mm
(28.9 in)- Length
Min.: 300 mm
(11.8 in)Max.: 700 mm
(27.6 in)
Description
Telescopic slides, steel for side mounting, over-extension, load capacity up to 100 kg
Material:
Slides steel.
Ball cages steel.
Balls, steel.
Version:
Slides electro zinc-plated.
Ball cages, electro zinc-plated.
Balls hardened.
Note for ordering:
Sold in pairs.
Note:
On telescopic slides with over-extension, the travel is greater than the installed length. Latches in closed position. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 10,000 or 80,000 cycles.
The load capacity is ca. 75% lower by horizontal mounting.
Advantages:
Latches in closed position
Suitable for flat mounting
Light running
