Linear positioning table 21080
motorizedaluminum

linear positioning table
linear positioning table
linear positioning table
linear positioning table
Add to favorites
Compare this product

Characteristics

Orientation
linear
Type
motorized
Other characteristics
aluminum
Stroke

Max.: 30 mm (1.181 in)

Min.: 24 mm (0.945 in)

Description

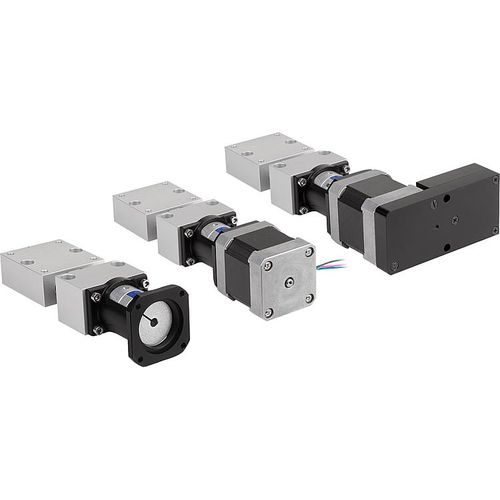

Positioning tables short with coaxial electric drive Material: Bearing block and carriage aluminium alloy. Guide column and threaded spindle stainless steel. Plain bearing for guide columns and spindle nut high-quality special plastic. Claw coupling aluminium with polyurethane coupling spider. Version: Aluminium alloy anodized. Stainless steel hardened and ground. Threaded spindle with ball bearing. Note for ordering: The unit is supplied with the position of cable outlet or control unit as shown in the drawing. Note: Positioning tables for motorised adjustment and positioning tasks. The plain bearings and spindle nuts are suitable for dry running, however lubrication with a grease for plastic plain bearings is recommended. The suitable programming software and interface cable for the stepper motor with positioning control are available as accessories (21088). The stepper motor with a resolution of 200 increments per rotation allows a single direction calculated positioning accuracy of 0.005 mm. The absolute single direction positioning accuracy is 0.01 mm. The system can be operated with a switch-on time of 100%. Can be combined with all other parts of the same size. Technical data: Threaded spindle pitch: 2 mm Axial backlash of threaded spindle: <0.04 mm Radial play of guides: <0.02 mm Max. input speed: 600 rpm Max. travel speed: 20 mm/s Max. duty cycle: 100 % Application temperature: +10 °C to +50 °C
