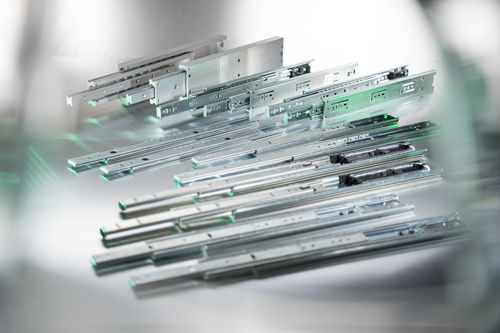

Telescopic linear slide 21334

full-extensioncaged ballprecision

Telescopic slides, steel for side mounting, full extension, load capacity up to 20 kg Material: Slides steel. Ball cages steel. Balls, steel. Version: Slides electro zinc-plated. Ball cages, electro zinc-plated. Balls hardened. Note for ordering: Sold in pairs. Note: By telescopic slides with full extension, the travel is roughly equal to the installed length, which ensures greater comfort and accessibility. The dynamic load capacity of the telescopic slides indicates the maximum load rating of a vertically mounted slide pair when the entire extension length is used. The load capacity specified is calculated with a slide spacing of 450 mm and is based on the maximum value with 80,000 cycles. Not suitable for horizontal mounting. The head height of the fastening screws should not exceed 1.8 mm otherwise there is a risk of collision with other parts of the slide. Advantages: Low slide thickness Light running Precise guidance for high lateral stability
