linear positioning table / precision / with position indicator
21132

{{requestButtons}}

Characteristics

  • Orientation:

    linear

  • Other characteristics:

    precision, with position indicator

  • Stroke :

    Min.: 14 mm

    Max.: 25 mm

Description

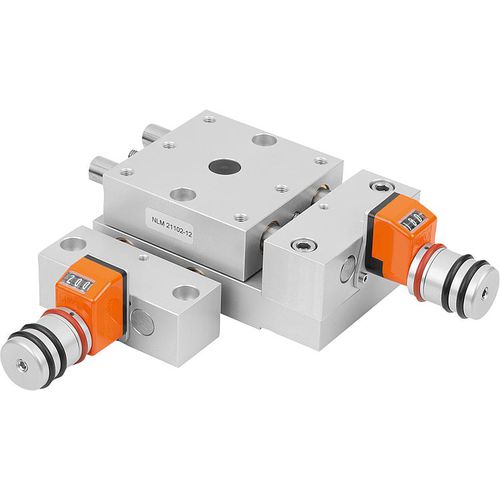

Cross tables, short with position indicators

Material:
Bearing block and carriage aluminium alloy, anodized.
Guide columns stainless steel, ground.
Spindle stainless steel, rolled thread.
Guide bearing maintenance-free.
Position indicator plastic.

Version:
Radial play on guide < 0.02 mm.
No axial backlash.
Spindle self-locking, with additional lock.

Note:
The almost play-free guides and absolutely play-free spindle allow for adjustment without the need to loosen or clamp the spindle.
Digital position indicator with 0.1 mm indicator accuracy, digits increase by clockwise rotation. The display value is set by turning the outer ring. The indicator can be mounted in 4 positions using a screw.
The cross stage can be easily combined with positioning stages, vertical stages and other accessories of respective size by the modular principle.

Drawing reference:
Assembly position of position indicator:
a) top (standard)
b) right
c) bottom
d) left
