A complete offer of chassis will cover all needs:
Industrial Rack Mount Chassis 4, 8, 14 or 20 slots with different combinations ISA/PCI.
Industrial Rack Mount Chassis with different height: 1U, 2U, 4U, 5U, 6U or 8U. Available with LCD screen
POwer supply 150W in 500W AT / ATX / AT-
Function PFC - verbose power supply- Power supply " hot-swappable ",... Chassis with tolerance of breakdown,control of machines, control of temperature, indicators of states in front panel, management of aeration,...
|
|
Driver Bays 2 x 5.25ff Bay, 2 x 3.5ff Bay
System Control Power Switch button, Reset button, Keyboard-Lock button
System Cooling Fan 1 x cooling fan(optional)
Power Supply Support ATX/PS/2 Power supply
Vibration 0.5g rms/5`500Hz/random operation
EMC CE/FCC Class B
Construction 1.2mm galvanized Heavy duty steel
Operating Temperature 0`50
Operation Humidity 5%`95%, 40, no condensing
Dimensions 482mm ~ 450mm ~ 177mm (W~D~H)
|
|
Dimensions acc. to IEC 60297 or IEEE 1101.1, Aluminum or sheet steel versions, up to superior EMC level. Large selection of assembly options.
|
|

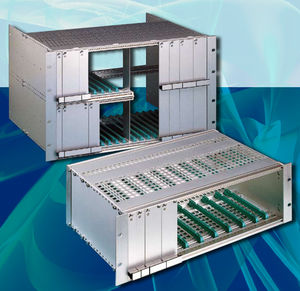

europacPRO
- 19 subrack
- With high flexibility
- EMC shielding can be retrofitted
- Fully IEEE 1101.1 compatible
europac integral
- Subrack with integrated functions
- Simple assembly
- Cost effective alternative for high quantities
multipacPRO
- 19" chassis for horizontal board installation and non-standardized components
- Versions in aluminium or sheet steel
inpac
- 19" chassis with high mechanical stability
- Modular design for standardised board formats
- Front and rear frame Al die cast frame Al die cast
|
|
|
The KM6 family of subracks has evolved over many years as the demands of the electronics industry have changed with advances in technology. It sets the standard against which other systems are measured: the KM6 range offers an unrivalled combination of strength, versatility and configurability at cost-effective prices: additional features such as RFI protection, shock and vibration protection can easily be specified. Whether used to house equipment meeting the requirements of open architecture bus structures such as CompactPCI or VMEbus or for broadcast, medical, test or general purpose applications, one of the three main variants of KM6, supported by a huge and comprehensive range of accessories, will fit the bill. All relevant international specifications are met.
|
|
Vitaro 195
ZENITH 160
BERLIN 150
apra Line 140
Tamago 185
apraTek 180
19" enclosure system 179
|
|
Elma offers AC and DC horizontal enclosures in 2U and 5U heights and a DC-only version in 4U height. They include a wide range of backplane, shelf management,and other options. Pluggable and redundant fan trays, PEMs and shelf managers provide the highest level of availability (99.999%). The units have been optimized via backplane signal integrity studies and chassis thermal simulation.
The 2nd Gen 19" rackmount vertical ATCA chassis is designed for carrier-grade applications. The 13U chassis features a 14 -slot Dual Star or Mesh backplane. The unit is fully pluggable, designed for NEBS compliance, and radial or bussed IPMB shelf management. The chassis has been optimized via thermal simulation studies.
|
|
AdvancedTCA Integrated Platforms
Kontron offers comprehensive pre-integration and pre-validation services for its AdvancedTCA open modular platforms. Available in different form factors, the line of Kontron OM platforms are reliable, scaleable and always the best configuration from the very start.
Please visit Kontron AdvancedTCA boards and review the Kontron portfolio of GbE and 10GbE AdvancedTCA platform elements including multi-core processor boards, switches and AdvancedMC carrier boards.
Please visit the Kontron AdvancedMC modules section for a complementary line of processor, I/O and storage AdvancedMC modules.
|
|
- Integrated Systems
14 slot dual star or full mesh system; AdvancedTCA systems available in Stock-2 week delivery!
- ATCA backplanes
- Front Panels & Accessories
Hot Swap AdvancedTCA handle and AdvancedTCA Sheet Metal front panels and air block filler panels
- Adapter Boards
- Shelf Management
|
|
|
|
|
|
Intel Server Chassis are designed and validated for easy, cost-effective integration with Intel Server Boards. A full line-up of pedestal and rack-optimized chassis are available to meet your customers' diverse needs.
Intel Server Chassis SR1500 is a performance 1U rack-mount chassis. Feature set supports the high-density server market
with: improved serviceability, accessory kits allowing
for configuration options and Intel Cable Reduction Technology that simplifies server infrastructure by eliminating cables to support up to three hot-swappable SAS (Serial Attach-SCSI) or SATA (Serial ATA) hard drives and one slim-line optical device.
The Intel Server Chassis SR2500 features integrated manageability with upgrade options including flexible drive configurations - up to 6 SAS or SATA HDDs or 5 drives plus tape and SAS RAID options which increases data protection and HDD I/O performance. Intel Server Chassis SR2500 is designed for increased uptime and tool free serviceability.
The Intel Server Chassis SC5400 offers an ideal solution for a variety of business environments. With great reliability, wide-ranging scalability, strong manageability, the SC5400 is a solid, cost-effective solution for a range of environments, from small businesses to database servers. The SC5400 chassis family supports SAS, SATA and SCSI drives for configuration and application flexibility. Applications needing maximum reliability, serviceability and uptime can benefit from the SC5400LXI SKU, which integrates fully redundant hot-swap power supplies and fans, and support for 6-drive hot-swap SAS/SATA drives.
|
|
Highlights
1Gb PICMG 2.16 platforms
Easier integration - bring solutions to market faster
Comprehensive shelf management throughout platforms
Flexibility and scalability, maximizing reuse
Targeted at high availability and standard applications
Wide range of interoperable blade functionality
- Single Board Computers
- I/O & Communication
- Media & Voice Processing
- Storage
- Embedded SS7 & SS7/IP
- Carrier Blades
|
|
|
We offer an extensive range of products for industrial PCs to the ATX standard, from 482.6 mm (19") rack-mount versions in 1, 2 and 4 U, through to solutions for direct mounting on mounting plates.
|
|
BMX-R10 System
The BMX-R10 Mini-ITX System supports the Avalue EMX-M6901G Mini-ITX motherboard. The system features an onboard AMD 200U 1GHz processor, a 2.5 HDD drive bay, and supports up to 4GB of DDR2 SODIMM memories. The rear panel I/O ports include USB, VGA, DVI, COM, KB/MS, LAN, Audio and a DC-in jack. The front panel has a power status LED indicator. The BMX-R10 system has a metal, seamless, black chassis that can be wall mounted or stand on a desktop. It measures only 260mm in width, 186mm in depth, and 58.5mm in height. It uses a 60-watt power adaptor.
MBX-R10 Features:
Cost Effective Industrial Design
Rigid Metal Chassis
2.5 HDD Drive Bay
System Fan Inside
Design for Compact but Easy to System Configure
60W AC Adapter / 12 Vdc in
Mounting Bracket for Wall/Desk Mount Applications
|
|
|
A 3U-high chassis which houses up to eight PC Blades. Each Cage is a self-contained unit that provides all of the Ethernet connections, airflow management, and power required by the Blades. Up to 14 Cages (112 Blades) can be mounted in a standard 6' rack. A BackPack connects directly to the back of each Cage, and PC Blades slide in the front.
|
|
Driver Bays 3 x 5.25ff Bay, 1 x 3.5ff Bay, 6 x 3.5ff removable sata HDD Bay
System Control Power Switch button, Host Power Switch button, Reset button, Keyboard-Lock button, DC Input
System Cooling Fan 6 x cooling fan
Power Supply Support ATX/PS/2 Power supply
Vibration 0.5g rms/5`500Hz/random operation
EMC CE/FCC Class B
Construction Heavy duty steel
Operating Temperature 0`50
Operation Humidity 5%`95%, 40, no condensing
Dimensions 482mm~540mm~177mm (W~D~H)
|
|
1U Industrial Rackmount
Model PRS-1174
19" 1U Height rack-mount micro-ATX based server with four drives

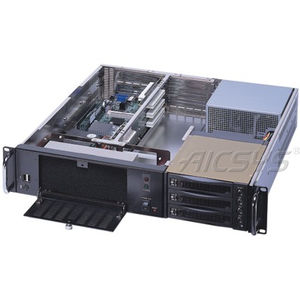

2U Industrial Rackmount
Model PRC-2193
19" 2U industrial rack-mount chassis for M/B version
3U Industrial Rackmount
Model AREMO-3194E
19'' 3U rack-mount chassis for ATX M/B platform(adopt PS/2 Power supply)
4U Industrial Rackmount
Model AREMO-4196
The Best Cost-Performance 19" 4U Height Pentium 4 Processor Based Rack-mount Computer
5U Industrial Rackmount
Model IRC-750
19" 5U rack-mount CTI chassis with 6 drive bays

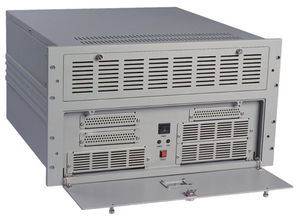

6U Industrial Rackmount
Model IRC-860
19" 6U rack-mount CTI chassis
Industrial Node Chassis
Model AREMO-6163
6-slot full-sized industrial node chassis (Shoe-box)
|
|
Description

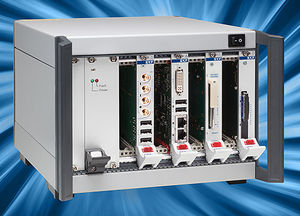

The GX7600 Series mainframes are compact, 9-slot PXI chassis that can accommodate up to 8 instruments as well as an embedded single slot PXI Express controller such as the GX7940 or a PXI Express external bus controller such as the x1 or x4 MXI - PXI Express interface. The GX7600s compact 3U form-factor occupies only 9x18 inches of bench space, making it ideal for benchtop or space constrained applications. And when combined with 8 peripheral slots, integral Smart functions, and the bandwidth of PXI Express, the GX7600 represents a new level of performance, capabilities and value for PXI mainframes.
|
|
|
MicroTCA is complementary to PICMG3.0 ATCA. Where AdvancedTCA is optimized for very high capacity and high performance applications, MicroTCA is designed to address cost sensitive and physically smaller applications with lower capacity, performance, and perhaps less stringent availability requirements. MicroTCA preserves many of the important philosophies of AdvancedTCA, including basic interconnect topologies and management structure.
|
|
Features:
- Using the features of AdvancedMC, MicroTCA provides high performance and high availability in one system. MicroTCA has the advantages and technology of AdvancedTCA but in a small form factor. This new technology is used in multiple industries with many different applications. In general, every application of AdvancedMC modules is also possible with MicroTCA modules. Schroff will supply development tools, standard applications and customised systems to further develop this new technology.
|
|
|
The range PAC is intended for difficult environments. This range can accept up to 8 cards (short or long) ISA, PCI, or PCIe. Products of this range have a systeme of blockage for every card and a filter with removable air for easy maintenance.Thanks to conectors, this PC could be defined according to your needs.
|
|

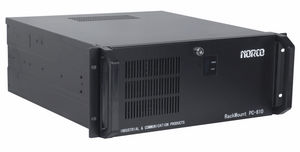

- 4U 19'' Rackmount Industrial Chassis for IPC or Mainboard :
- Rugged design constructed in 1.2mm Heavy duty steel and
it's a cost effective solution
- One 12cm lntake cooling for excellent cooling cycle and
comes with washable air filter
- Design for various industrial computer for networking,
communication applications and related solutions
|
|
|
The BackPack plugs into the rear of the Cage and connects the PC Blades to the User Ports and the network. BackPacks, in conjunction with ClearCube software, enable PC Blade sparing and IT administrative control.
|
|
|
|
|
|
19 " Rack for Data and ICT
We have designed a smart range of 19 " rack enclosures, especially for telecommunications and data applications. We supply a completely finished and mounted enclosure to save assembly costs, all the doors can be dismounted and the main door has a rotating handle. Our wide range of manufacturing possibilities offers customised design as standard, available from 21 U to 48U or even more. The enclosure design is fully ventilated in the upper part and can even house fans inside to force ventilation within the enclosure towards the outside, conserving the electronic components inside the enclosure in perfect condition.
Given the multitude of solutions we can offer for this type of enclosure, we can easily adapt to our customers' requirements and make any proposed solution viable.
Special Solutions
The following colours are available: Grey RAL 7035, 7032 and Graphite Grey
Types of doors: ventilated, with slats, blind, transparent, dark.
Customised to your requirements.
Ventilated plinths.
Roof with forced ventilation.
Metal feet.
Soundproof rack enclosures.
Manufactured in stainless steel AISI 304 or 316. EN 14401.
EMC protection seams between the frame and the contact surface. Guaranteeing a perfect electrical connection. EEC 89/336.Standard.
|
|
Due to the hardness of the material, we recommend using metal multi-tooth screw
SZ 2486.300 for the interior installation.
Rittal Service:
TS stainless steel (1.4301) available in protection category NEMA 4x on request please add extension .640 to the Model No.
Material / Surface finish
Material:
Stainless steel 1.4301:
Enclosure frame, roof, rear panel and gland plates: 1.5 mm
Door(s): 2.0 mm
Mounting plate: 3.0 mm sheet steel
Surface finish:
Enclosure frame and gland plates: Bare
Door, roof and rear panel: Brushed on the outside,
grain size 240
Mounting plate: Zinc-plated
Supply includes
Enclosure frame with door(s), mounting plate, gland plates, rear panel and roof, 2 support strips fitted in the enclosure depth (only with depth 600 mm).
Protection category
IP 55 to EN 60 529/10.91, NEMA 12 is met.
|
|
D-4080 Retractable Writing Shelf
D-4100 Storage Drawer
D-4454 Solid Bearing Sliding Shelf
C-7100 Ball Bearing Sliding Shelf
C-71307 Ball Bearing Shelf
D-4451 Adjustable Fixed Shelf
|
|
Eldon's Upgraded Floor Standing ElRack Patch and Server Rack Series
ElRack just got better! Not only is the "one-rack-solution" to providing a variety of different mounting possibilities a real winner with the industry, but now with the newly released accessories available, ElRack truly becomes a real trend setter! Whether you need 19", 23", 24" or ETSI (metric) requirements, the ElRack%uFFFD copes with all sizes, as standard.
Dimensions available:
- H: height from 21U (1000mm) to 48U (2200mm),
- W: width 600mm, 800mm and 900mm,
- D: depth 600mm, 800mm, 900mm, 1000mm and 1200mm.
The Elbox wall mounting range:
Boasting a fresh, appealing design, the new ElBox patch box comes in 400mm, 500mm and 600 mm deep versions. While both the 400mm and the 500mm will be supplied as knock-down or flat-pack versions, the 600 mm deep model will be delivered pre-mounted at the factory.
|
|
|
|
|
|
PE Rack Complete Cabinets - Complete Solutions for Networks and Servers
Project and Effi ciency Range with low-cost Complete
Cabinets for networks
-Models for maximum market coverage with 25 U and 43 U in
heights of 1200 and 2000 mm respectively, depths of 600, 800
and 900 mm and widths of 600 and 800 mm
-Extremely strong framework with a load bearing capacity of up
to 700 kg
-Frame can be halved
-High quality powder coating fi nish in light grey RAL 7035 on all
panelling components
-All panelling, such as side panels and doors, can be removed in
seconds.
-Top and bottom modules prepared for brush strips and/or
ventilators
-Doors fi tted with T-handles and locks. Can be exchanged for
pivoted handles.
-Plinths are passively ventilated, 100 mm high.
-Standard depth-adjustable 19 mounting angles
-Extremely high savings on baying solutions due to intermediate
sets
Material:
-Framework, vertical: 1mm steel sheet, multiply profi led; horizontal:
2 mm rectangular tube.
-Panelling: 1 mm steel sheet
Finish:
-High-quality powder coating in light grey RAL 7035
-Top/bottom modules, installation set for mounting angles and
19 mounting angles all galvanised
|
|
Eta offers a number of RACK solutions to satisfy a majority of applications including:
19" swinging frames
19" fixed frames
19" rails
Double Hinge Boxes (CR)
- Swinging frames with solid rotation hinges are manufactured from sheet steel and offer outstanding strength and versatility. The rotation direction is reversible (left-right) and the opening angle varies according to cabinet width.
- Fixed frames are applied directly on the cabinet framework. Only for cabinet with 600 width.
- CR Box (Double Hinge)
CR Boxes have two sections. The central section is used for mounting 19" components whilst the rear section with mounting plate, can be used for assembling standard components. The front with silk-screened security glass offers excellent visibility and aesthetic. Door can be mounted left or right.
|
|
With UNIQLE, SCHFER is systematically implementing the principle of a cooling system integrated in the server rack. The decision for integration is a logical step.
Server space is not unlimited! And through the trend to higher and higher computer performance accompanied by a greater packaging density, server racks must assure a maximum of space efficiency. This enables
a maximum computer density per m2 floor space to be achieved.
|
|
- Door with safety lock and polycarbonate glass. Useful dimensions 660x525 mm h.
- Suitable for monitor sizes up to 21". Internal dimensions of upper compartment: 690x600x580 mm h.
- Retractable keyboard shelf Useful dimensions 620x510 mm h.
- The lower compartment can be fitted with retractable and height-adjustable shelves for housing hardware systems and printers. Internal
dimensions 690x600x720 mm h.
- Cooling fan with dust filter.
- 4 channel cable duct.
- 5 socket electrical system with circuit breaker.
- Air inlet hole with dust filter.
- Intlet hole for network cables and outlet hole for power cable.
- Room temperature for use -5/+40 C with humidity up to 50%
- Room temperature for use -5/ 20 C with humidity up to 90%
|
|
|
|
