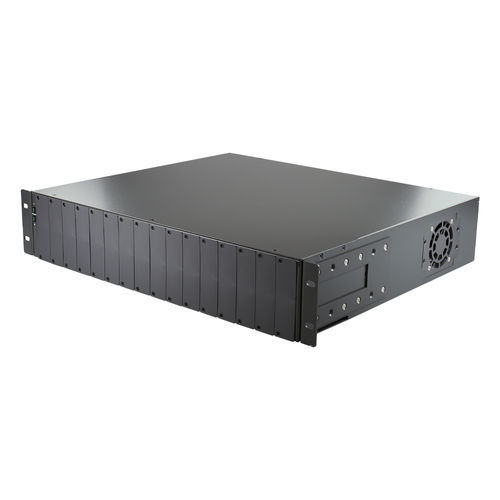

Rack-mount chassis FCU-RACK16-DC

19"2U

Product Overview Antaira Technologies FCU-RACK16-DC is a 19-inch rack mountable chassis. The FCU-RACK16-DC is capable of housing 16 hot swappable media converters. The FCU-RACK16-DC has an optional redundant power supply system with automatic power load sharing, providing proper operation even if one of the power supplies goes down. This rack mountable chassis is DC powered and FCC compliant. Providing a cost effective solution to fiber deployment, the FCU-RACK16-DC is able to integrate different FCU media converters into one unit. Features - Support 16 slots for FCU series Media Converters - 19-inch Rack Mount, 2U Height - 2 Slide-in Hot-swappable Power Module Slots - Load Sharing power supply system - 3 Hot-swappable Fans - LED Indication for Primary (Power A) and Backup (Power B) power supplies Package Content - FCU-RACK16-DC - CD Manual - Power Cable - 1 x DC Power Supply Module Optional Accessories - FCU-RACK-DC-PWR: DC Power Module For FCU-RACK-16 Regulatory Approvals - Green: RoHS Compliant - Warranty: 5 years Downloads - Datasheet - Quick Installation Guide Technical Specifications - Product Name: FCU-RACK16-DC - Type: 16-Slot Unmanaged Universal Media Converter Rack - Power Supply: 1 DC Power Supply included, optional redundant module - Mounting: 19-inch Rack Mount, 2U Height - Hot-swappable: Yes, for media converters and power modules - Fans: 3 Hot-swappable - LED Indicators: For Power A (Primary) and Power B (Backup) - Compliance: FCC, RoHS - Warranty: 5 years
