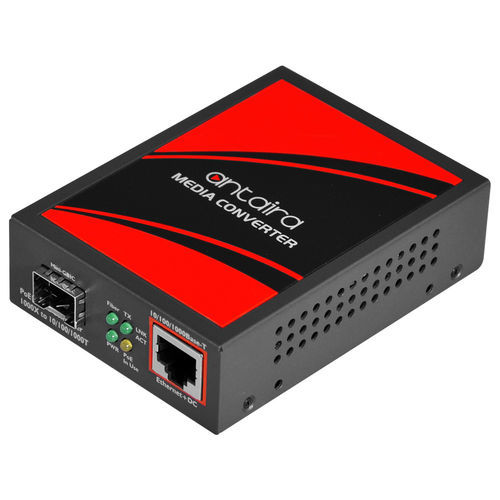

Protocol converter FCU-2805P-SFP

wavelengthgigabit mediaGBIC

Product Overview Antaira Technologies FCU-2805P-SFP is a compact gigabit fiber to 10/100/1000 Ethernet media converter. The FCU-2805P-SFP is housed in an industrial metal case and conforms to FCC emission standards. It features a standard LC fiber connector as well as a copper STP-RJ45 Ethernet connector. The FCU-2805P-SFP is fully compliant with IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab 1000Base-T. It features LEDs that provide indicators for Power, TP Link/ACT, and Fiber Link/ACT. The FCU-2805P-SFP is a gigabit media converter that is also able to provide IEEE 802.3at high power PoE. With 30 watts of available PoE, the FCU-2805P-SFP media converter has the power and fiber capabilities for many different applications. Features - Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3at, 802.3af - Supports PoE Power up to 30 Watts per Port - Provides DC 52V Power over RJ-45 Ethernet Cable - Mini-GBIC SFP Connector - IEEE 802.3x Full-Duplex Flow-Control & Back-Pressure in Half-Duplex - Supports Auto MDI/MDI-X Function - Store-and-Forward Mechanism - Compact Size for Easy Installation Package Content - FCU-2805P-SFP - Quick Start Guide - External Power Adapter Optional Accessories - CBF-LC01LC-MD: LC To LC 1 Meter Multi-Mode Duplex - FCU-BK: Wall-Mount Brackets For FCU Modules (1 Pair) - FCU-DIN-RAIL-KIT: Din-Rail Kit for FCU- Modules - SFP-M: 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, 0º~70ºC - SFP-S10: 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, 0º~70ºC Technical Specifications Technology - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3z 1000Base-X Gigabit Fiber, IEEE 802.3at/af PoE - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x back pressure flow control Performance - Jumbo Frame: 9K bytes - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port Ethernet Interface - Ethernet Port Count: 1 port - 10/100/1000 BASE-T(X): 1 × RJ45 Port - PoE Port: 1 port (30W/port) - PoE Pin Assignment: 1/2(+), 3/6(-) Fiber Interface - Fiber Port Count: 1 port - 1000 BASE-X Fiber: 1 × SFP slot - Wavelength: Depends on SFP modules - Transmission Distance: See SFP Specifications - Tx Power, Rx Sensitivity, Link Budget: Refer to SFP specification Other Interface - DIP Switch: LFP Function (Disable/Enable) Setting - LED Indicator: Power, TP Link/ACT, Fiber Link/ACT, PoE Mechanical Characteristics - Housing: Metal - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 70 × 97 × 26 mm - Weight: 200 g Power Requirements - Power Connection: External power supply / DC Jack - Input Voltage: 52V DC, 0.58A - System Power Consumption: 3 Watts (Standby), 26.4 Watts (Full Loading) - Max. PoE Power Budget: Max. 30 Watts Environmental Limits - Operating Temperature: 0° to 50° C (32° to 122° F) - Storage Temperature: -10° to 70° C (14° to 158° F) - Ambient Relative Humidity: 5% to 90% non-condensing Regulatory Approvals - Certifications: FCC, CE - EMI: FCC Part 15 Class A CE - Green: RoHS Compliant - Warranty: 2 years
