Protocol converter IMP-C1000-SFP-T

speedgigabit mediatemperature

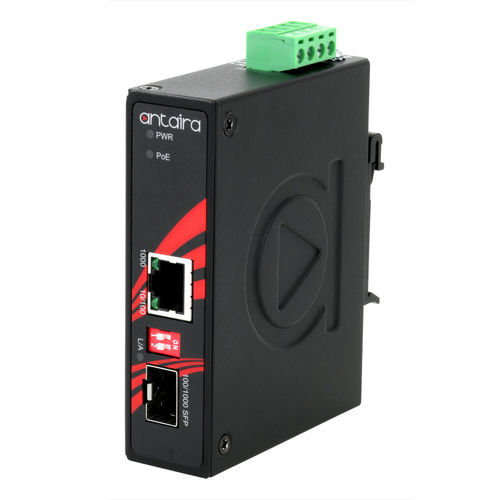

Product Overview Antaira Technologies’ IMP-C1000-SFP series is a compact IP-30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port that supports IEEE 802.3at high power PoE (up to 30 watts), and a dual rate 100/1000 SFP slot. Designed for industrial applications requiring distance extension and high bandwidth, its small form factor is ideal for outdoor use in factory automation, security, ITS transportation, power/utility, water/wastewater treatment plants, and other extreme environments. The IMP-C1000-SFP series includes built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) functions, 48~55VDC redundant power inputs with reverse polarity and overload current protection. It supports DIN-rail and wall mounting, with two operating temperature models: STD: -10°C to 70°C and EOT: -40°C to 80°C. Features - Compact Industrial Grade Design - UTP to Fiber Media Converter - Embedded 1 Port PoE Injector Function - RJ-45 Port Supports Auto MDI/MDI-X Function - Auto Negotiation Speed, Half/Full Duplex - Store-and-Forward Switching Architecture - Built-in Link Fault Pass Through (LFP) & Far End Fault (FEF) - Jumbo Frame Support: 10k bytes - Wide-Range Redundant Power Design - Redundant Power Input: 48~55VDC - Wide Operating Temperature Model Available (-40°C to 80°C) - Power Polarity Reverse Protection - Overload Current Protection - DIN-Rail or Wall Mountable - IP30 Protection - 5-Year Warranty Package Content - IMP-C1000-SFP - Quick Installation Guide - 1 × IMP-C1000-SFP Industrial Gigabit Media Converter - 1 × Wall mounting bracket set with screws - 1 × DC cable –18 AWG & DC jack 5.5x2.1mm Optional Accessories - SFP-100M-T: 100 Mbps Fiber SFP Transceiver, Multi-Mode 2km / LC / 1310nm, -40º~85ºC - SFP-100S20-T: 100 Mbps Fiber SFP Transceiver, Single-Mode 20km / LC / 1310nm, -40º~85ºC - SFP-M-T: 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, -40º~85ºC - SFP-S10-T: 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, -40º~85ºC Technical Specifications - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3z 1000Base-X Gigabit Fiber, IEEE 802.3af/at Power over Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x back pressure flow control - MAC Table Size: 8K - Jumbo Frame: 10K bytes - Memory Buffer: 1Mbit - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port - Ethernet Port: 1 × RJ45 Port w/10/100/1000TX with PoE+, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection - PoE Port: 1 port (30W/port) - PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) - Fiber Port: 1 port 100/1000 BASE-(F)X SFP (depends on SFP module) - Link Loss Forward: LFP (Link Fault Pass Through) - DIP Switch: DIP Switch 1: LFP Enable/Disable; DIP Switch 2: SFP 100Mbps/1000Mbps - LED Indicator: Unit: PWR, PoE; TX: Link/Act/Speed; Fiber: Link/Act/Speed - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 26 × 95 × 75 mm - Weight: Unit: 0.55 lb; Shipping: 0.99 lb - Power Connection: Removable 4-contact terminal block - Input Voltage: 48V–55V DC, Redundant Input - Power Redundancy: Yes - System Power Consumption: 3 Watts - Max. PoE Power Budget: Max. 30 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -40° to 80° C (-40° to 176° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE, UL 61010-1 / UL 61010-2-201 - EMI: FCC Part 15 Subpart B Class A, EN 61000-6-4 Class A - EMS: EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6 - Green: RoHS Compliant - Warranty: 5 years
