Ethernet extender IVC-4011-T-V2

industrialnetwork

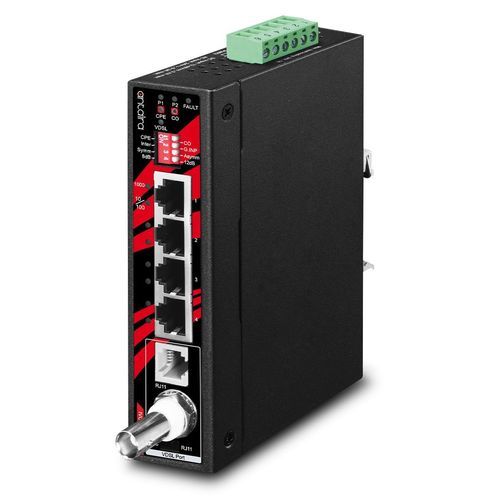

Product OverviewAntaira Technologies’ IVC-4011-T-V2 is an Industrial Ethernet Extender featuring a switching architecture with 4 RJ-45 10/100/1000Mbps Ethernet ports and one asymmetric or symmetric Ethernet over VDSL port. The VDSL port can be either an RJ-11 or BNC connector, allowing customers to continue using their existing network with current coaxial cable or telephone wire without the need for rewiring.The IVC-4011-T-V2 provides a high level of immunity to electromagnetic interference and heavy electrical surges, making it suitable for environments such as plant floors or curbside traffic control cabinets. It is designed with an IP-30 metal case and supports both DIN Rail and Wall Mount installation. The device operates in extreme ambient temperatures ranging from -40 to 75°C.Without incurring extra costs, users can easily deploy a new local Internet in residential areas, public service facilities, campuses, and hospitality environments by applying the IVC-4011-T-V2 to the original network structure.FeaturesIP30 metal case protection, DIN Rail and wall mount designITU-T G.993.5 G.Vectoring and G.INPUpstream/Downstream bandwidth up to 200/100MbpsCO/CPE mode selectable via DIP switchSelectable target band plan and SNR marginUses existing RG59/RG6 coaxial cableUsed in pairs to extend point-to-point connection up to 1.2kmSupports IEEE 802.1Q VLAN tag transparencySupports 6000 VDC Ethernet ESD protection12 to 48V DC, 24V ACRedundant power with polarity reverse protect functionSupport extensive LED indicators for network diagnostics5-Year warrantyPackage ContentIVC-4011-T-V2 x 1User’s Manual x 1Wall-mount Kit x 1RJ11 / RJ45 Dust Caps x 5Optional AccessoriesDIN-RAIL-KIT-3: New design DIN-Rail bracket for Ethernet switches, 44x70x10.2mmTechnical SpecificationsTechnologyIEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit EthernetProcessing Type: Store and ForwardProtocol: CSMA/CDFlow Control: IEEE 802.3x back pressure flow controlPerformanceMAC Table Size: 2KJumbo Frame: 9K bytesTransfer Rate: 14,880pps for Ethernet, 148,800pps for Fast Ethernet, 1,488,000pps for Gigabit EthernetEthernet InterfaceEthernet Port Count: 4 ports10/100/1000 BASE-T(X): 4 portsOther InterfaceDIP Switch:DIP-1: Select CO or CPE modeDIP-2: Select G.INP or Interleaved modeDIP-3: Select Band Profile (Asymmetric or Symmetric)DIP-4: Select SNR of 12dB or 8dBLED Indicator:Power 1/Power 2: GreenFAULT: Red1000BASE-T LNK/ACT: Green10/100BASE-TX LNK/ACK: GreenVDSL: GreenCO: GreenCPE: GreenMechanical CharacteristicsHousing: Metal, IP30 protectionMounting: DIN-Rail mount, Wall mount (Optional)Dimensions (W × H × D): 135 × 32 × 87.8 mmWeight: 185 gPower RequirementsPower Connection: Removable 6-contact terminal blockInput Voltage:DC Input: Dual 12V–48V DC, 0.4A max.24VACPower Redundancy: YesSystem Power Consumption: 5.7WESD: 6KV DCEnvironmental LimitsOperating Temperature: -40° to 75° C (-40° to 167° F)Storage Temperature: -40° to 85° C (-40° to 185° F)Ambient Relative Humidity: 5% to 90% non-condensingRegulatory ApprovalsCertifications: FCC, CEEMI:CISPR 32:2015+A1:2019 0AS/NZS CISPR 32:2015+A1:2020EN 55032:2015+A1:2020EN IEC 61000-3-2:2019+A1:2021EN 61000-3-3:2013+A2:2021EMS:EN 55035:2017+A11:202EN 61000-4-2:2009EN IEC 61000-4-3:2020EN 61000-4-4:2012EN 61000-4-5:2014/A1:2017EN 61000-4-6:2014/AC:2015EN 61000-4-8:2010EN IEC 61000-4-11:2020Green: RoHS CompliantWarranty: 5 years
